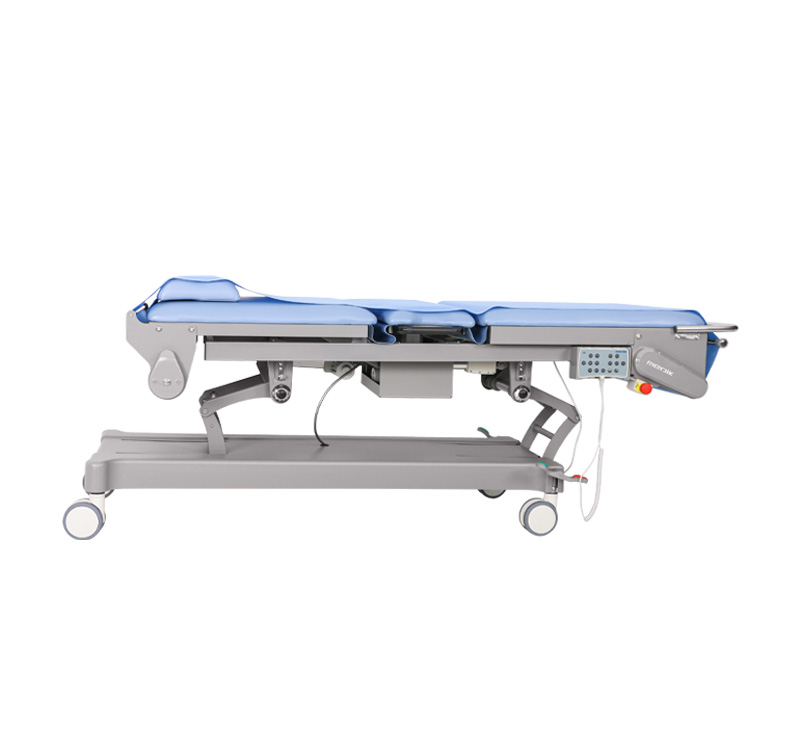

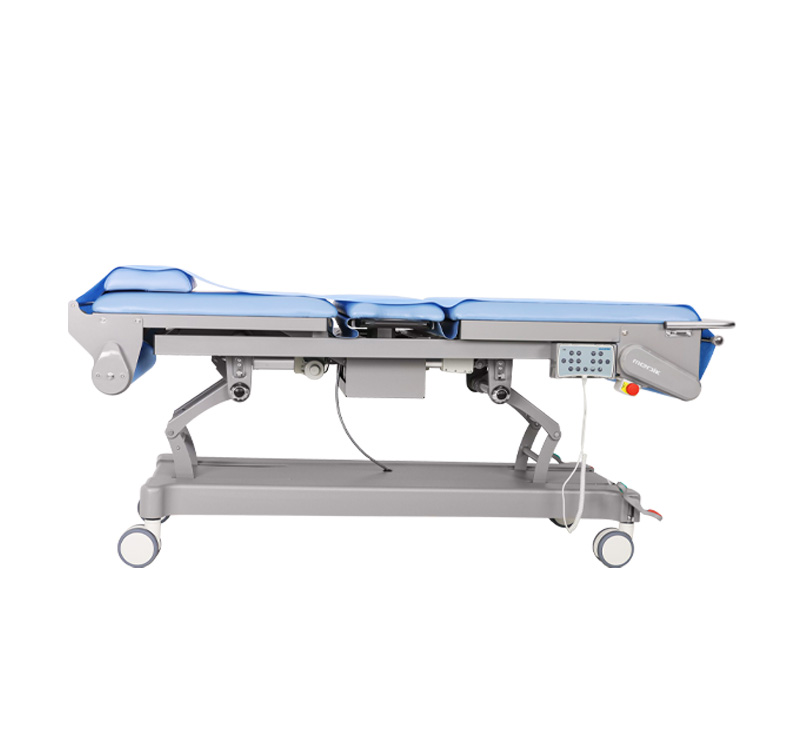

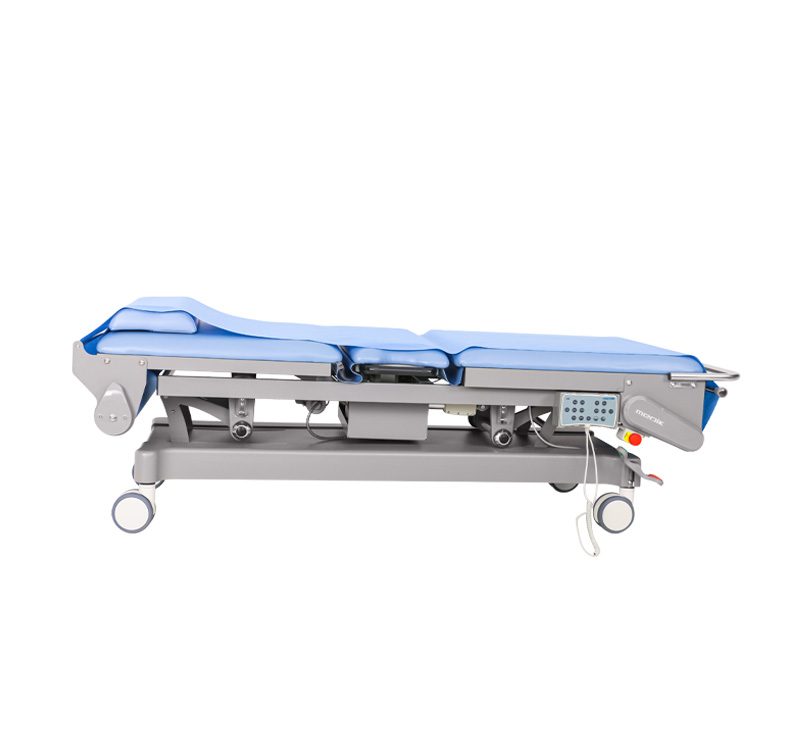

YA-EC-U03 Ultrasound Scanning Tables

Share:

Model: YA-EC- U03

Overall Size: 2100*770*620-900mm

Load Capacity: 170 kg

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details
  • Downloads

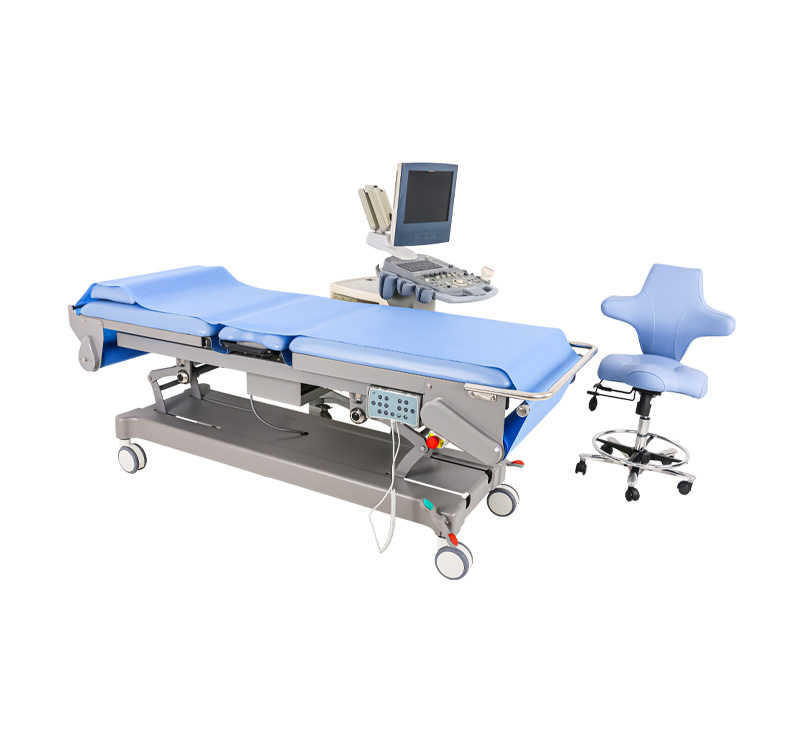

Automatic linen sheet change will improve the exam efficiency, especially for the ultrasonic room, and it will provide a good hygiene experience for patients, comes with very comprehensive position adjustment capabilities, and YA-EC-U03 which bears the features is an ideal option for an ultrasound exam room.

Main features

- Steel with powder coating structure, durable, antibacterial and anti-corrosion

- Seamless high-density mattress, antibacterial,corrosion-resistant and scratch-proof

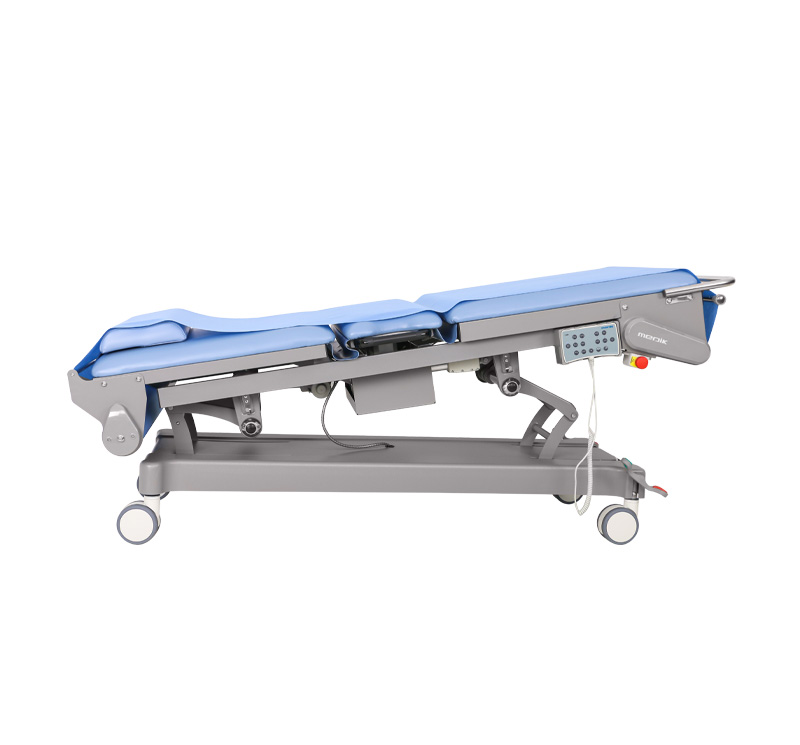

- Trendelenburg/Reverse Trendelenburg/height /Back and seat section adjustment function

- Sheet roll holder on both ends of the bed

- Automatic bed sheet change with automatic deviation correction function

- Quick bed sheet changing system

- Four castors,dia 5 inches , with central brakes for easy transport

- Has an emergency stop button

- With battery backup for emergency situations

Technical parameter

ModelYA-EC-U03
Overall size2100*770*620-900mm
Height adjustment620-900mm
Trendelenburg/Reverse Trendelenburg0~12°
Back section0~70°±5°
Seat section lifting0~100mm
Static working load170kg
Dynamic working load250kg
CastorDia 5 inchies
N.W145kg
G.W185kg
