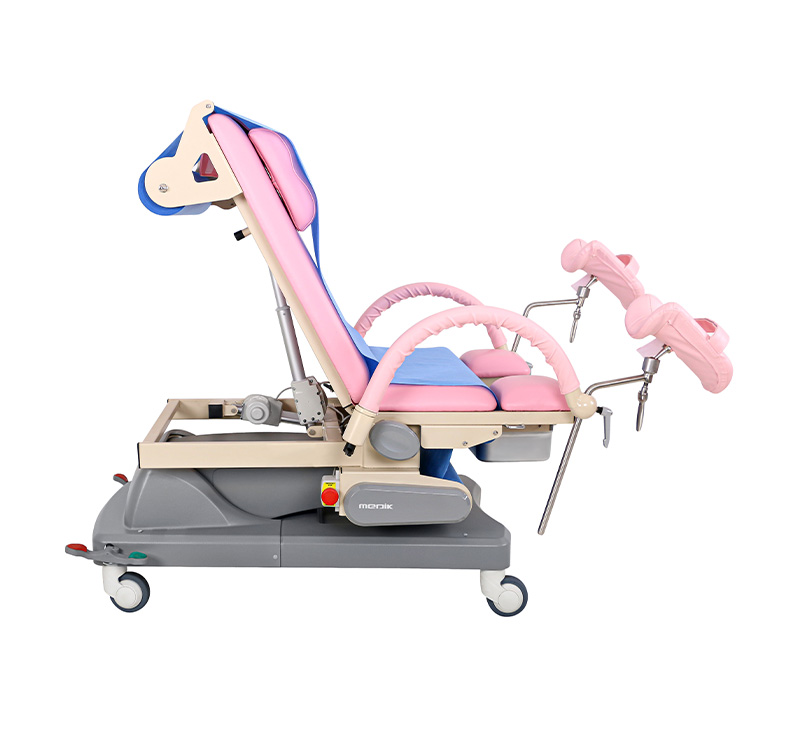

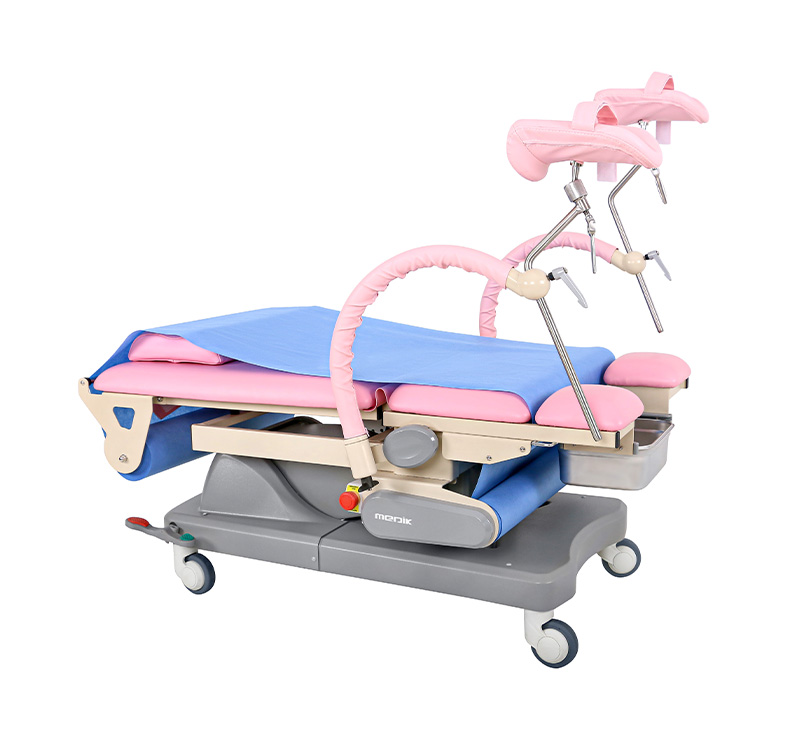

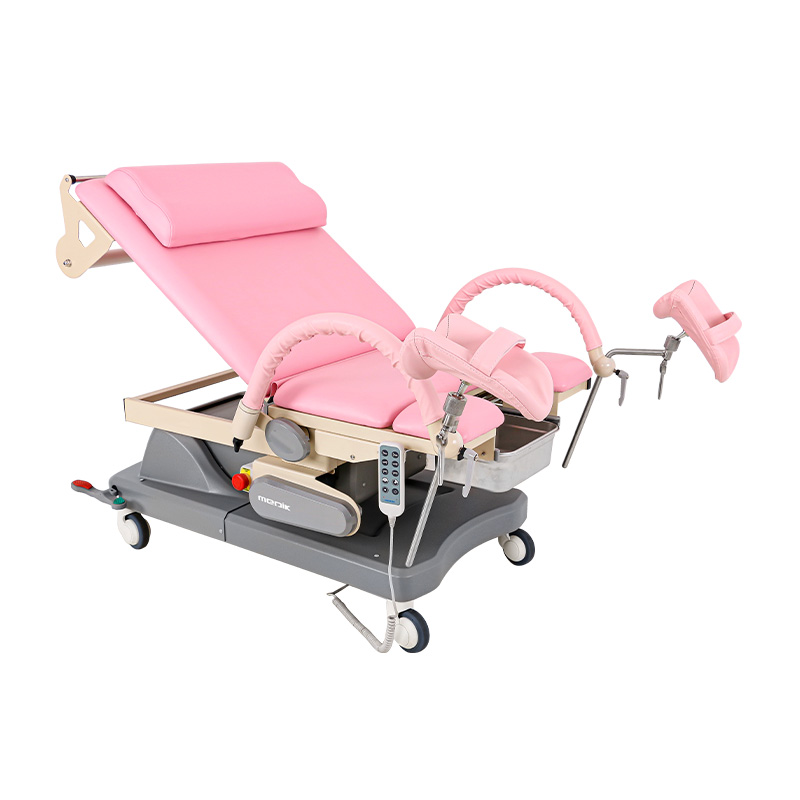

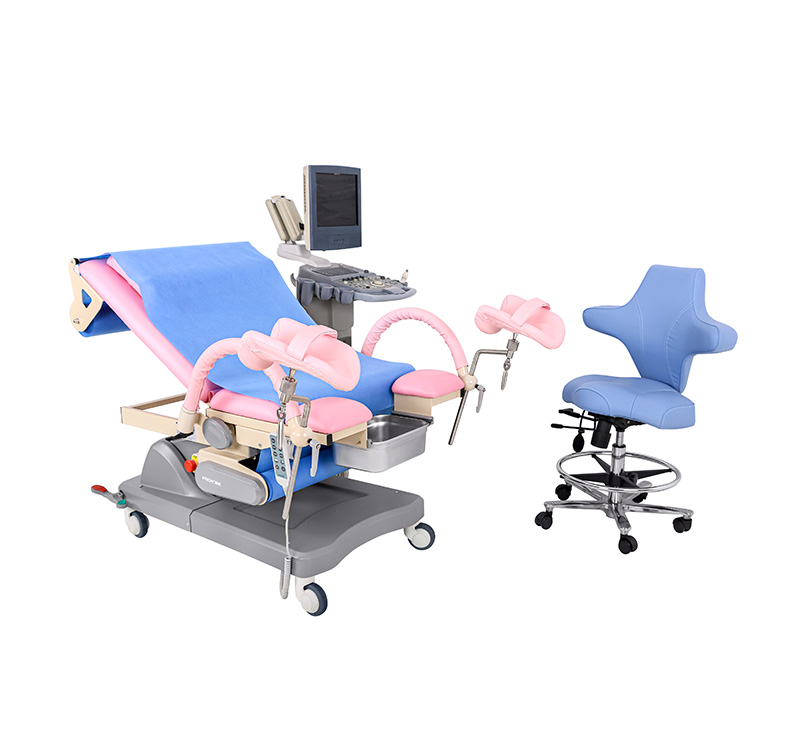

YA-EC-U06 Gynae Ultrasound Couch

Share:

Model: YA-EC-U06

Overall Size1680*1040*570-850mm

Load Capacity: 170kg

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details

Automatic linen sheet change will improve the exam efficiency, especially for the ultrasonic room, and it will provide a good hygiene experience for the patient, the multi-angle adjustable leg rest can achieve a variety of inspection angles, all these features make YA-EC-U06 widely suitable for ultrasound rooms and gynecological examination rooms.

Main features

- Steel with powder coating structure, durable, antibacterial and anti-corrosion

- Seamless high-density mattress, antibacterial, corrosion-resistant and scratch-proof

- The height and angle of leg rest can be adjusted

- Sheet roll holder on both ends of the bed

- Automatic bed sheet change with automatic deviation correction function

- Quick bed sheet changing system

- Four castors, Dia 5 inch, with central brakes

- Emergency stop button

- With battery backup for emergency situations

- With Filth basin

Technical parameter

ModelYA-EC-U06
Overall size1680*1040*570-850mm
Height adjustment570-850mm
Back section0~65°±5°
Footrest rotate angle0~180°
Footrest lifting angle-20~20°
Filth basin adjusted distance0~100mm
Static working load170kg
Dynamic working load250kg
CastorDia 5 inch
N.W102kg
G.W127kg
