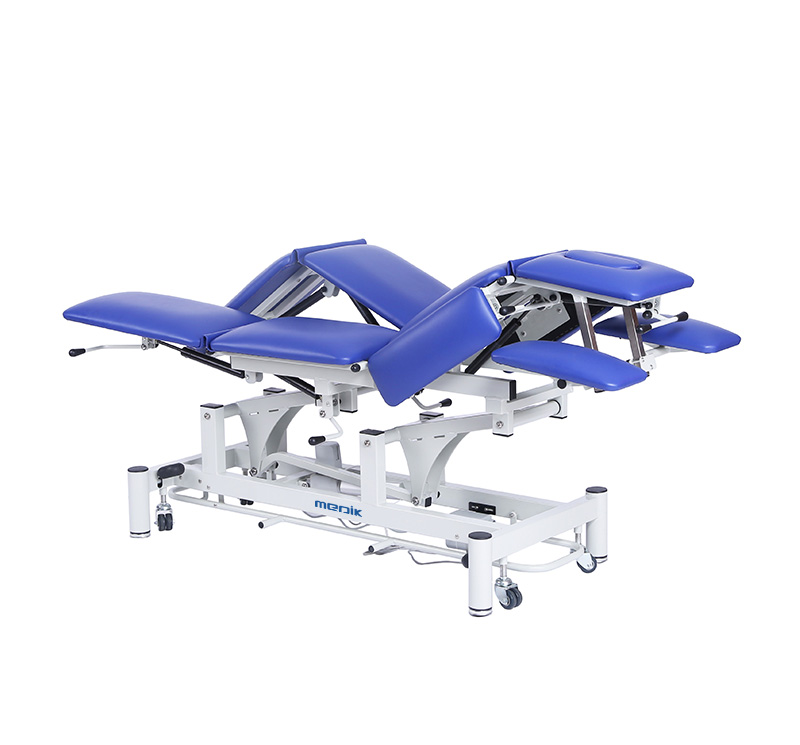

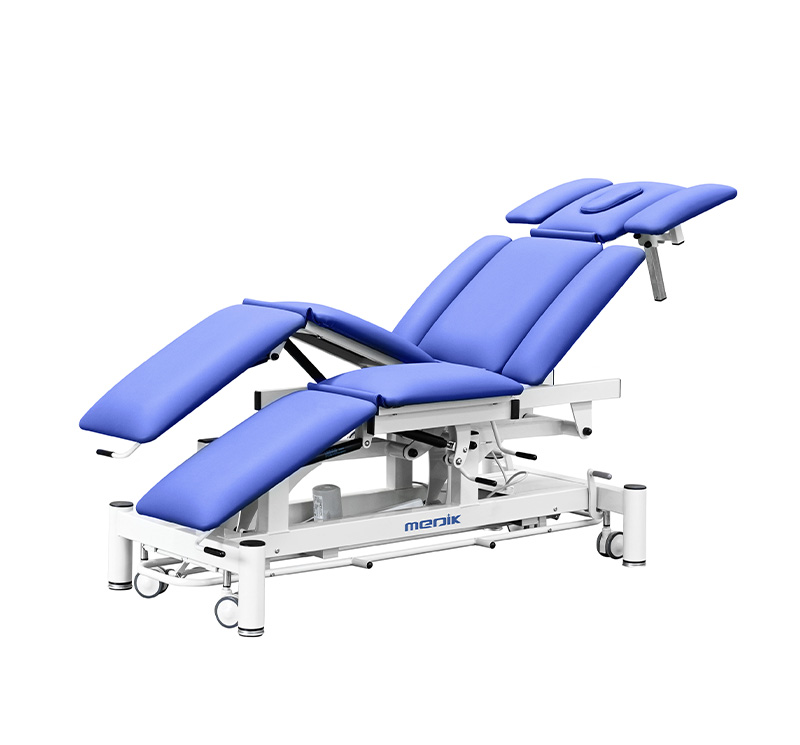

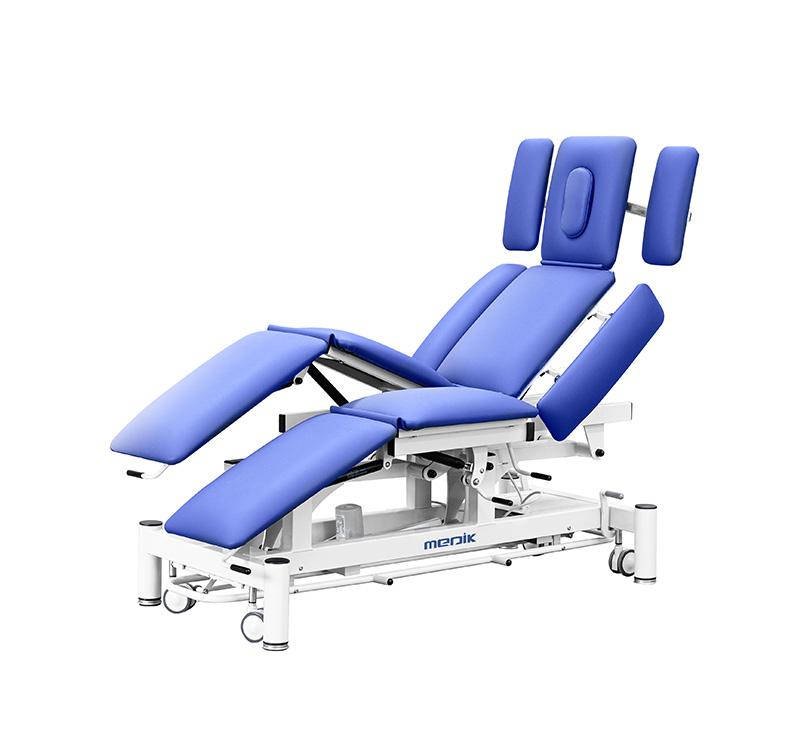

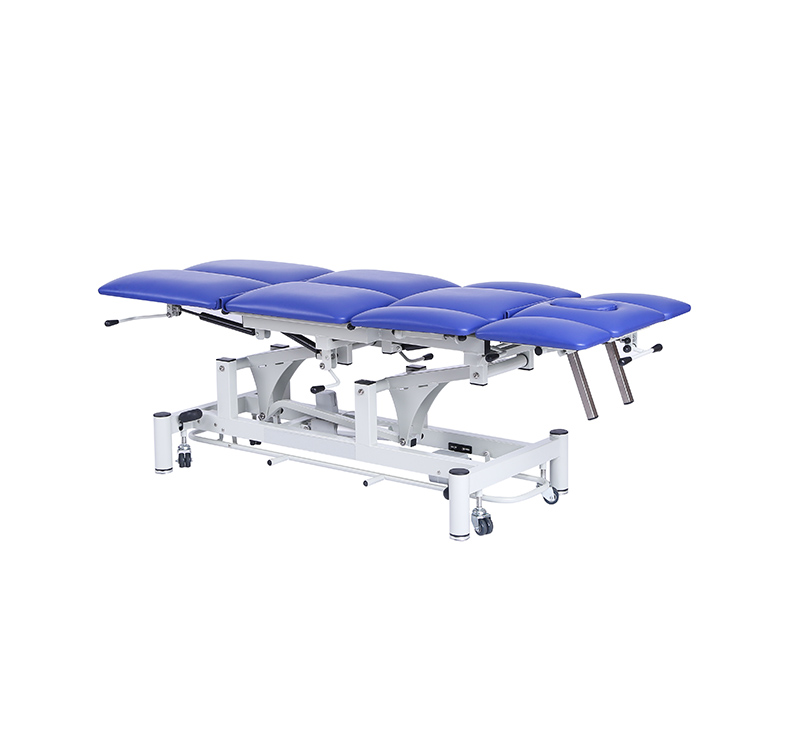

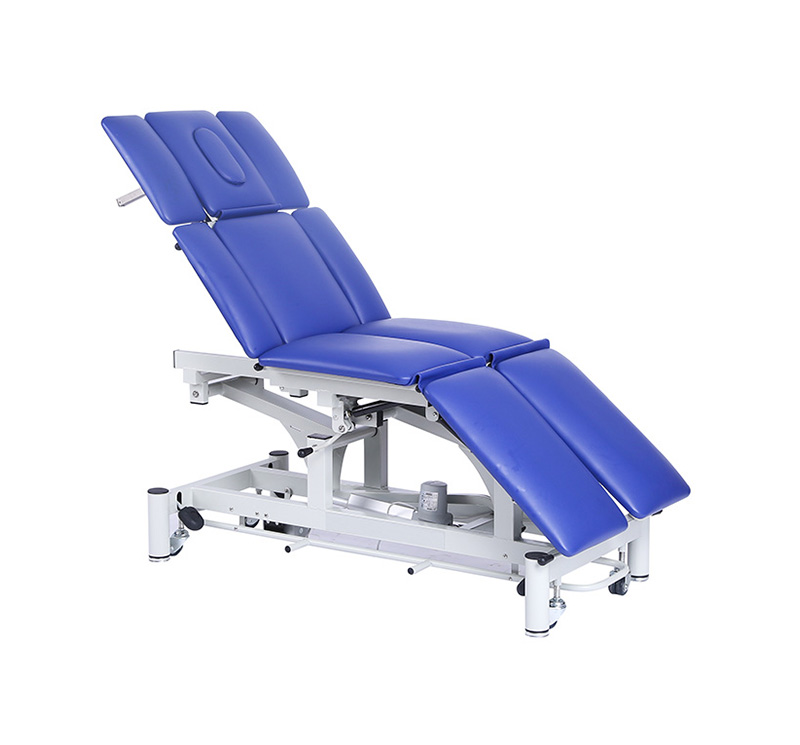

YA-ET-D05 Luxurious 10-section examination table, with a heavy duty base and a stable position adjustment system, maximizes flexibility during examination and treatment. Each section can be adjusted independently to achieve the best treatment position and increase patient comfort.
Technical Parameters
| Dimensions | |
| Overall size | 1950 x 660 x (510-960)mm |
| Head Section Length | 360mm |
| Back Section Length | 490mm |
| Seat Section Length | 420 mm (*2) |
| Leg Section Length | 560mm (* 2) |
| Load capacity | 225kg |
| Caster | Dia75mm |
| Foam Thickness | 5cm |
| Foam Density | 36g/m2 |
| Function | |
| Adjustable Height | 510 – 960mm |
| Head section adjustable | -45° to+35° |
| Back section adjustable | 0° to +55° |
| Seat section adjustable | 0° to +20° |
| Leg section adjustable | 0° to -55° |
Main features
- Features a 10-section top design
- Leg section could be separated two parts
- Stepless arm supports featuring quick adjustment with gas springs
- Heavy-duty steel frame to ensure long-term use
- Standard head section has face hole, but it may be ordered without a face hole (Please specify when ordering)
- Electric power height adjustment with foot control
- Hands-free low voltage foot control
- Seamless, rounded corner, upholstered top
- 2" ultra-firm padding
- Four casters allow the treatment table to be moved or stored
- Available in 9 upholstery options
- Variety of accessories available
Standard Options
- Foot control
- Hand control is free to transfer
- Paper roll holder unavailable
- Extra width upholstery up to 70cm.
- Extra 2cm foam thickness for upholstery.
Size picture:
