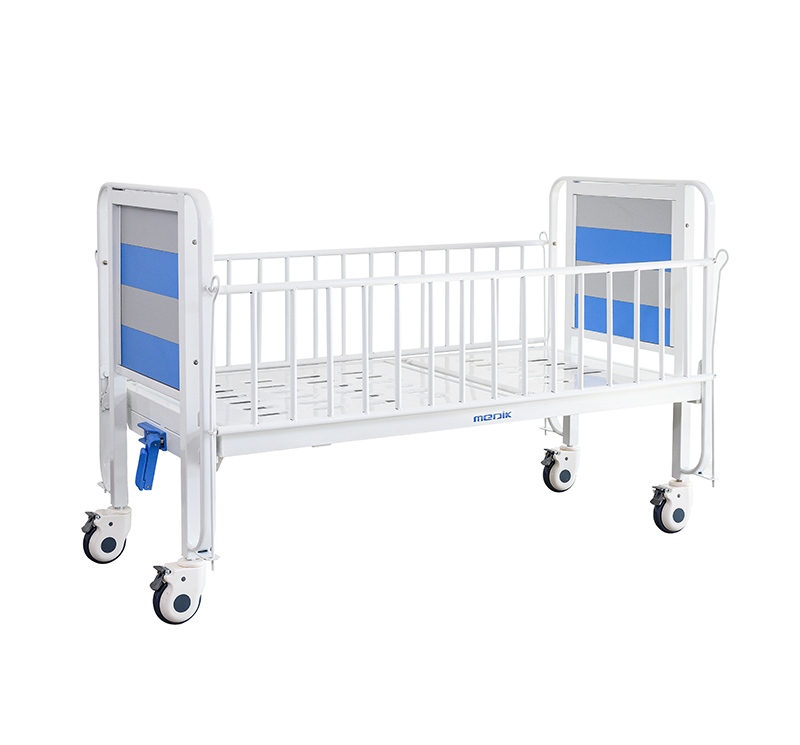

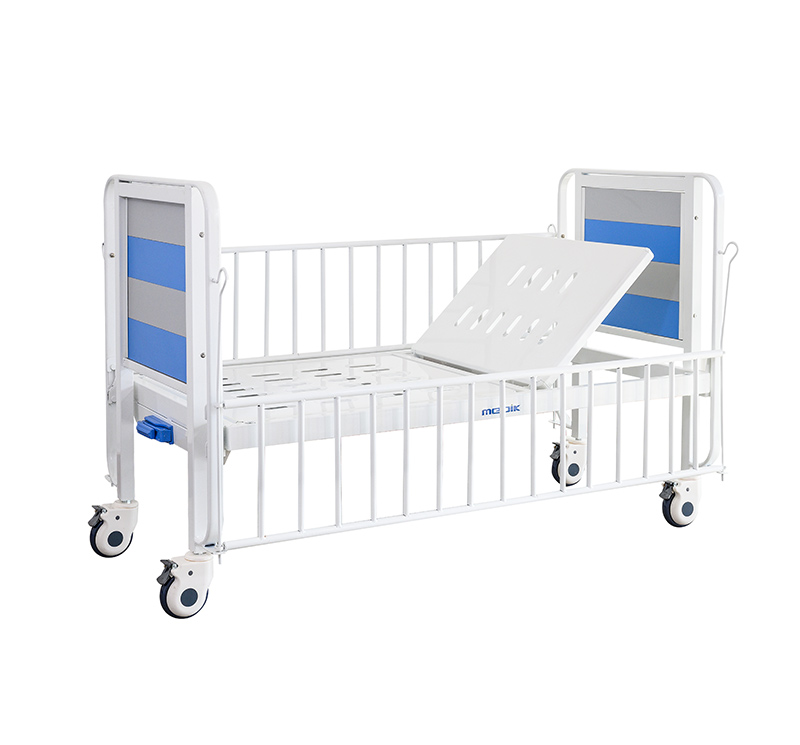

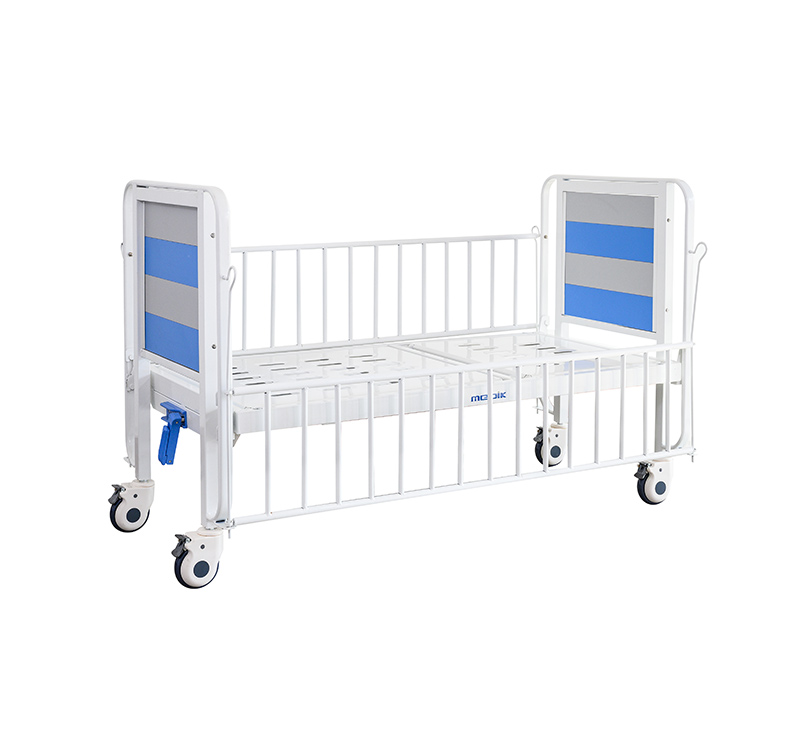

YA-PM1-1 is a basic pediatric mechanical bed with slide-down side rails. It is a very durable and basic pediatric hospital ward bed with manual backrest adjustment. Two of the castors have individual locking for safety and stability.
Main features
- Full-length heavy duty protecting rail sliding up-down
- Head&foot board with attractive cartoon paste
- Bed sheet top made from perforated steel, epoxy powder coated and baked finish
- Bed framework made from mild steel ERW rectangular tubes
Accessories
- 1 pc SS telescopic I.V pole;
- 4 pcs urine bag hooks;
- 4 pcs I.V holes .
Technical parameter
| Overall size | 1650*800*500mm |
| Lying size | 1550*730mm |
| Railing Height | 500mm |
| Back section adjustment | 0-75° |
| Fixed height | 500mm |
| Caster | Dia 125mm |
| Safe loading capacity | 100kg |
