MC-D06 Electric Obstetric Parturition Bed

Share:

Model: MC-D06

Overall Size1950*950*650-900mm

Loading capacity: 230kg

Certificate: CE / ISO

After-sale Service: Online technical support

Warranty:  5-Year on Frame and Welds, and 1-Year on Parts



  • Product Details

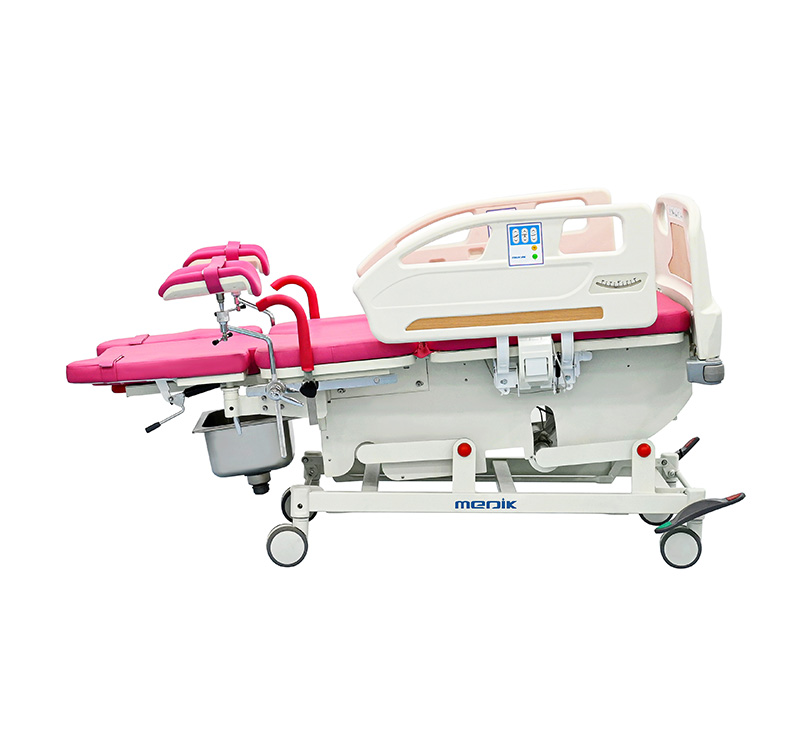

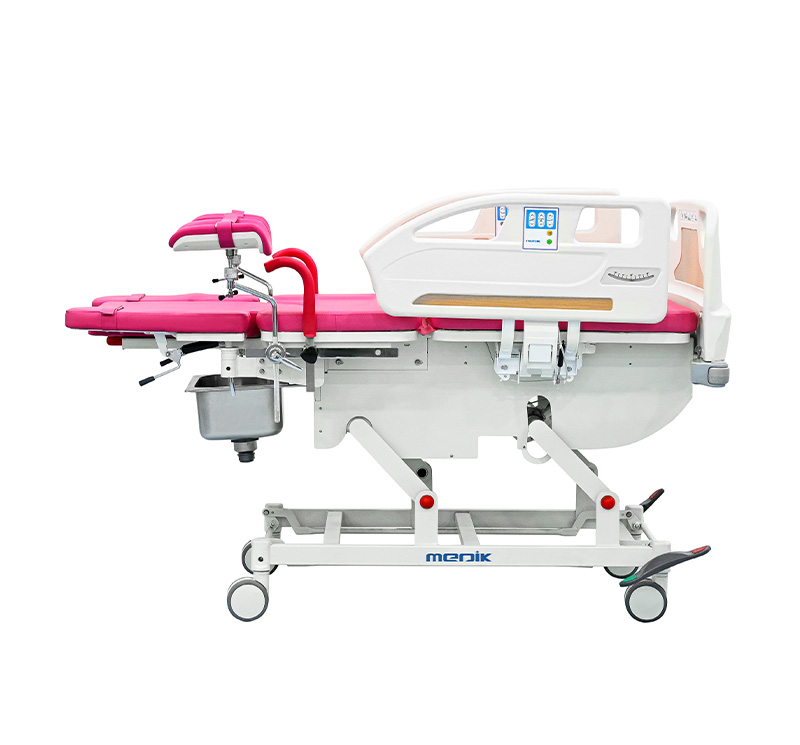

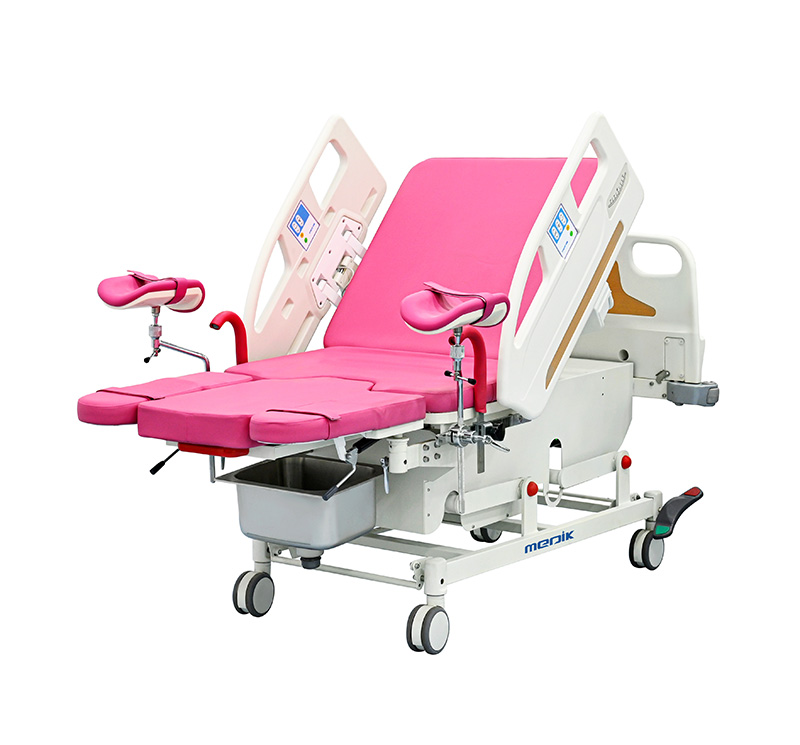

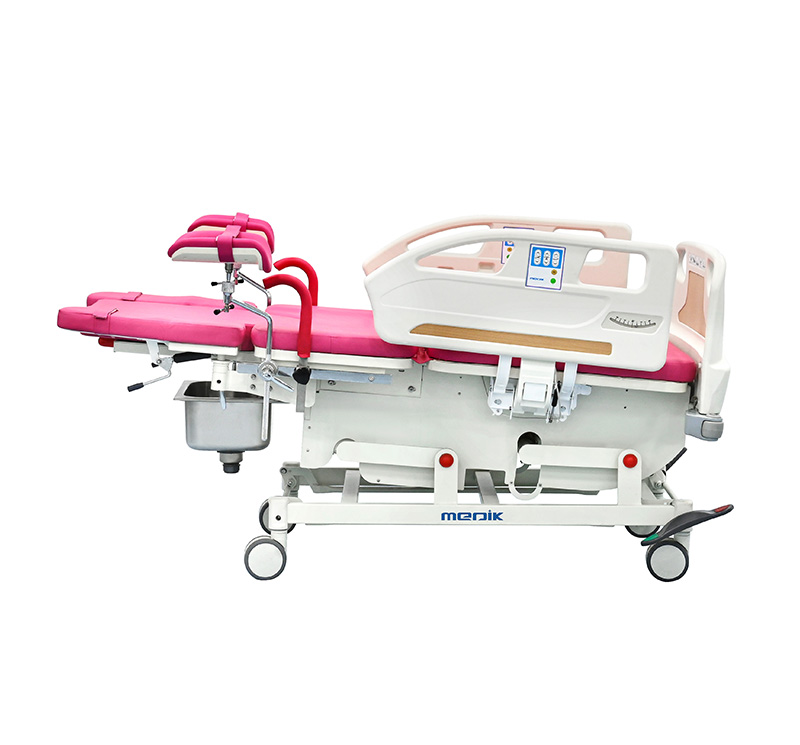

The MC-D06 is a fully electric LDR bed with closed structure for easy clean.The unique design of the leg section that fold up into footrests helps the patient adjust her delivery posture. The integrated design of the delivery bed can meet the needs of the patient during the entire delivery process needs, including labor, delivery and recovery stages, and improve physician efficiency and physician-patient comfort.

Main features

- Bed Frame made of steel with powder coating suface

- Closed structure,easy for clean

- Folded up design of the leg section, convenient for patient

- Removable stainless steel waste basin with drain pipe

- Three-position central brake castors with guidance function

- Trendelenburg and reverse trendelenburg position

- Two split side rails, drop down under the bed platform

- Detachable headboard with easy lock

- With angle indicator embedded in the railing

- Bumper castors at the head of the bed for protection

Technical parameter

ModelMC-D06
Overall size1950*950*650-900mm
Height adjustment650-900mm
Back section up/down0-65°±2°
Foot section up/down0-40°
Trendelenburg0-10°±2°
Revere- Trendelenburg0-10°±2°
Foot section fold up/down55°±2°/5°±2°, removable
CastorDia 150mm
Loading capacity230kg
N.W100kg
