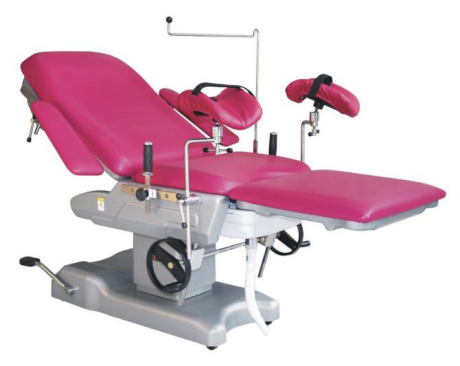

The YA-C102D01 hydraulic obstetric table is equipped with a auxiliary table for gynecological examinations and treatments
The leg segment (auxiliary table) can be easily detached
Height adjustment of the table realized due to hydraulic pump regulated by foot pedal
Back segment inclination angle regulated by gas spring
Trendelenburg and Reverse-Trendelenburg positions are realized by ratchet system
The chassis is constructed of steel with ABS cover
With 3 wheels to move the table and it is easy to use the hammer to lock the wheels anchored to the floor
Features:
The YA-C102D01 hydraulic obstetric table is equipped with a auxiliary table for gynecological examinations and treatments
The leg segment (auxiliary table) can be easily detached
Height adjustment of the table realized due to hydraulic pump regulated by foot pedal
Back segment inclination angle regulated by gas spring
Trendelenburg and Reverse-Trendelenburg positions are realized by ratchet system
The chassis is constructed of steel with ABS cover
With 3 wheels to move the table and it is easy to use the hammer to lock the wheels anchored to the floor
Specifications:
| Table’s length | 74" (1850 mm) |
| Table’s length in chair position | 52.4" (1310 mm) |
| Table frame width | 24.4" (610 mm) |
| Height adjustment | 650mm-900mm (hydraulic pump) |
| Back rest inclination angle | 70° (gas spring) |
| Trendelenburg position | 20° (Ratchet system) |
| Reverse Trendelenburg position | 10° (Ratchet system) |
| Armrest swing out | 90° |
| Permissible load | 160kgs |
| Gynaecological bowl capacity | 468x338x125mm |
