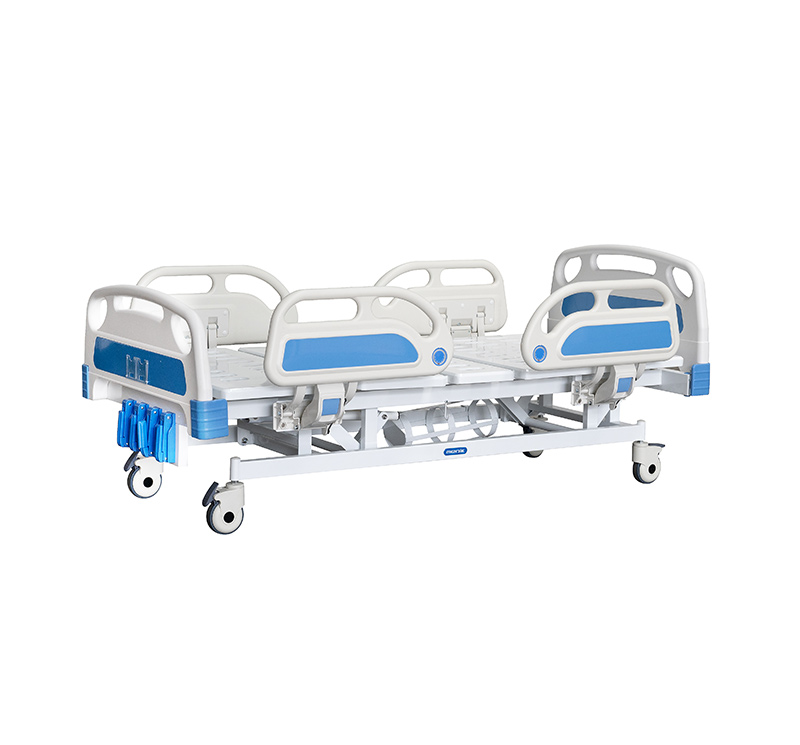

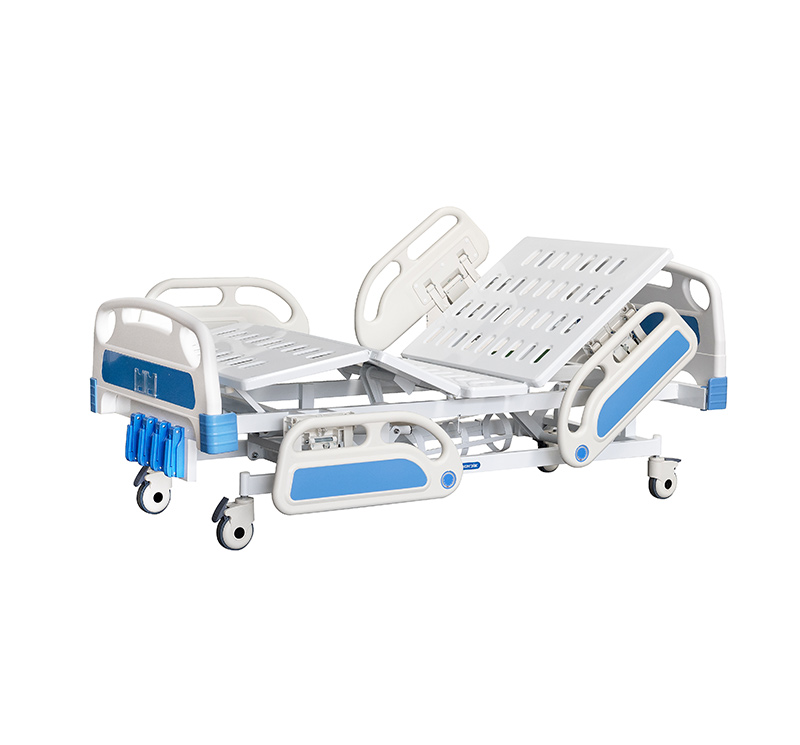

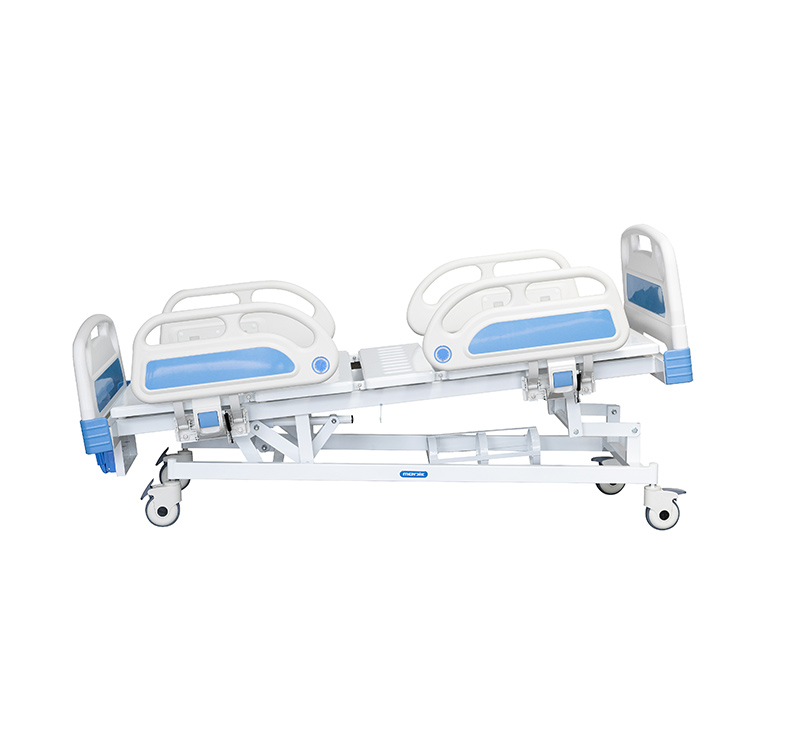

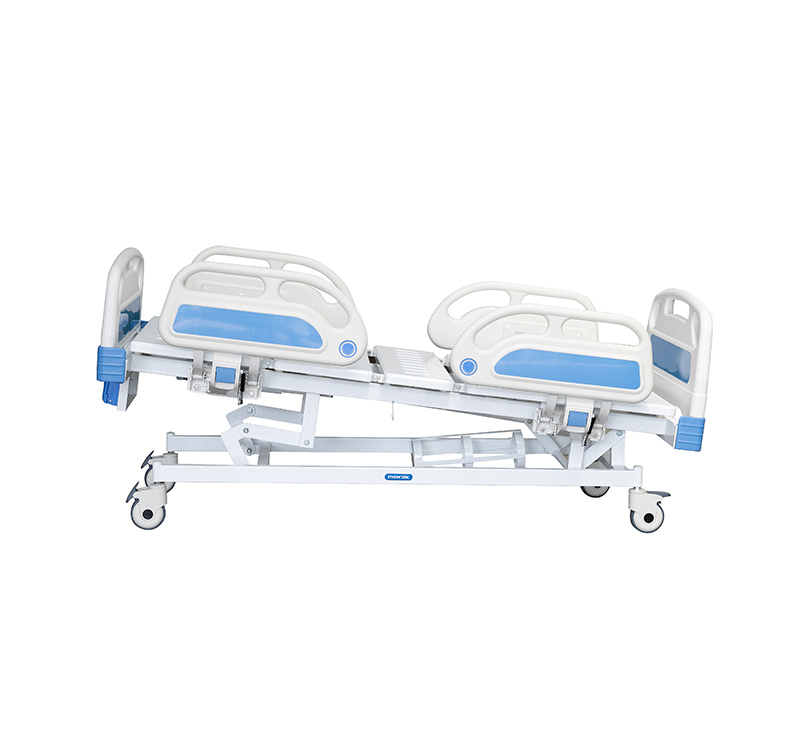

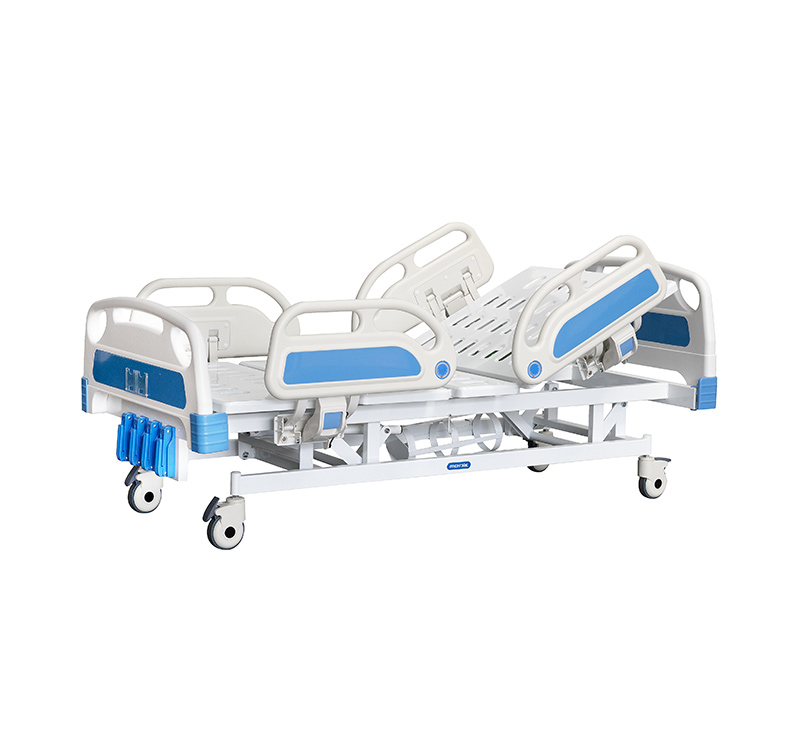

YA-M5-6 Five Function Maunal Adjustable Medical Bed

Share:

Model: YA-M5-6

Overall Size2240*1085*450-700mm

Safe Working Load: 200kg

Functions: Backrest, Footrest adjustable, High-low, Trendelenburg, Revere-Trend

Color options:  Green, Blue, Wood

Customization:  Available

Certificate: CE / ISO

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts



  • Product Details
  • Downloads

The YA-M5-6 is a 5 functional manual hospital bed with an ergonomic design and elegant appearance. Patient safety and functionality at low cost are the priority concerns for this bed. It provides a complete range of bed postures with a low budget.

Main features

- Bed Frame electrophoresis and powder coating

- MS perforated platform with ventilation hole, molded

- Four split side rails, drop down under the bed platform

- Head and Footboard Detachable head/footboard with easy lock

- 4 pieces foldable hand cranks

- Urine bag hooks on both sides

- With an angle indicator embedded in the railing

- Oxygen bottle holder and IV pole

Technical parameter

ModelYA-M5-6
Overall size2240*1085*450mm (88″ x 42.7″ x 17.7″)
Recommended mattress size2015*875mm (79″ 34.5″ )
Height adjustable450-700mm (17.7″ – 27.5″ )
Backrest adjustable0° to 70°
Footrest adjustable0° to 40°
Trendelenburg/reverse trendelenburg0-12°
CastorDia 125mm ( 5″ )
Loading capacity200kg(440 Ibs)
