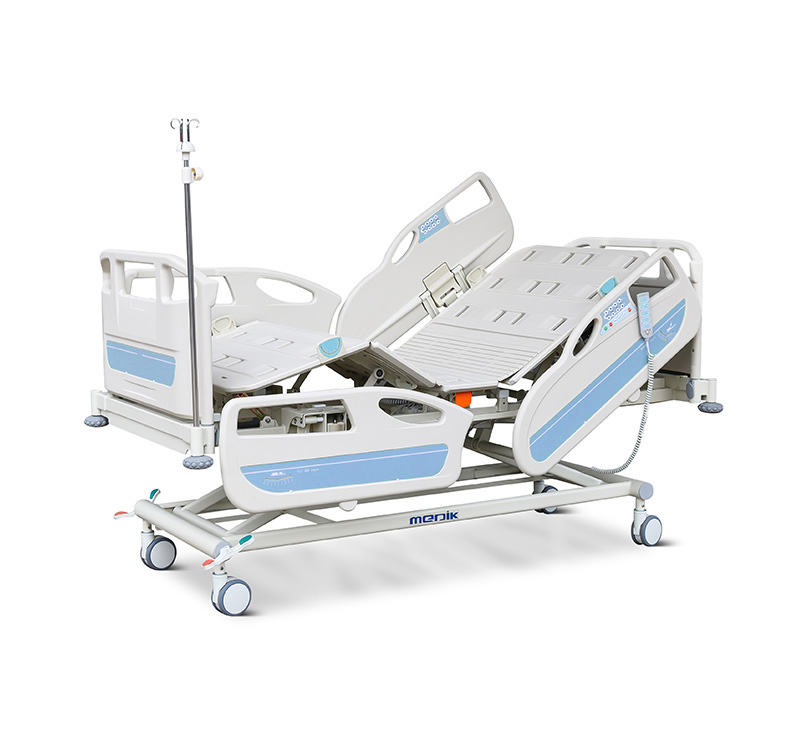

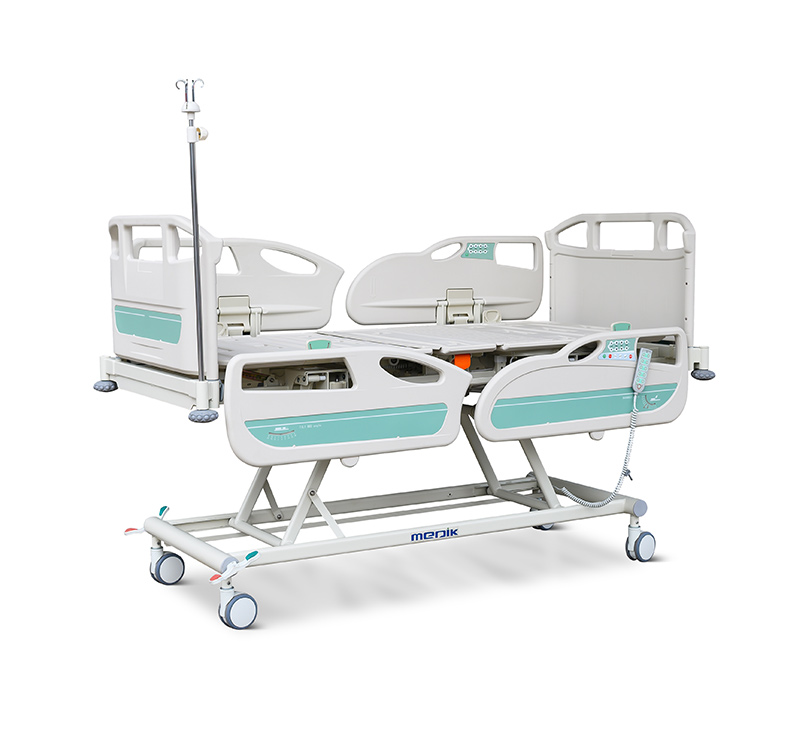

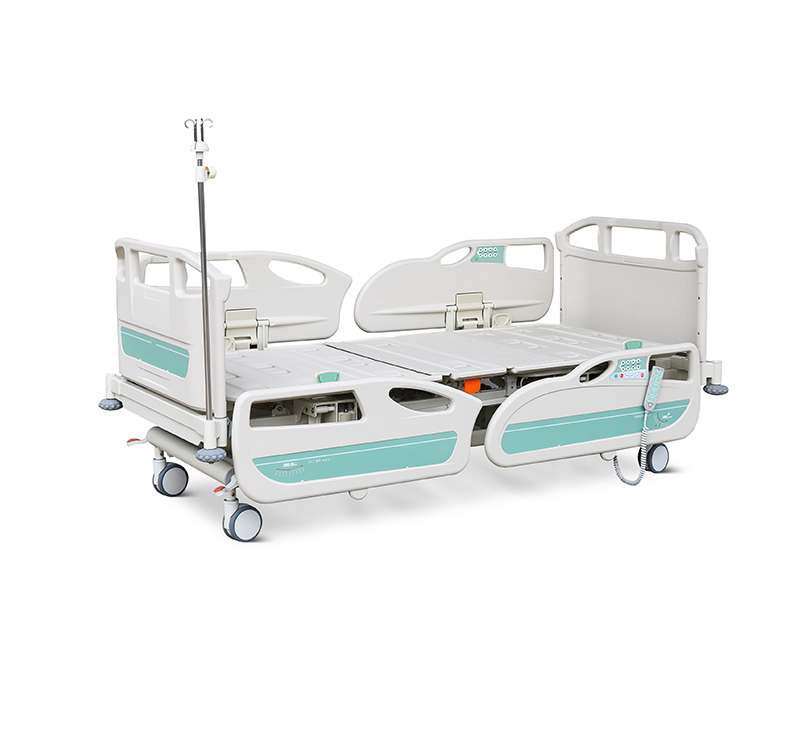

YA-D6-3 New Fully Electric High End Hospital Beds

Share:

Model: YA-D6-3

Overall Size: 2200*1000*480-780mm

Safe Working Load: 230kg

Functions: Backrest, Footrest, High-low, Trendelenburg, Reverse Trendelenburg

Certificate:  ISO/CE

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts

  • Product Details

YA-D6-3 hospital bed has marked another generation for Medik’s ICU bed design. The ergonomic design is adequately considered for bed manipulation and patient safety. It is a recovery platform that can perfectly serve as the hospital’s ICU bed with the below excellent features.

Features

- Full-length protection railing with angle indicator

- Insert type head/foot ends easy for removal in case of emergency

- Bumper casters on four corners

- Electric CPR handle (optional)

- Quiet and robust electric actuators provide reliable operation

- Remote handset control of all electrically operated functions and movements

- Central-controlled braking system

- Nurse controller (optional)

- Embedded railing control (optional)

Technical parameters

ModelYA-D6-3
Overall size2200*1000*480mm (86.5″ x 39″ x 20″)
HI-LOW480-780mm (20″ – 31″ )
Backrest adjustment0-75°±5°
Footrest adjustment0-40°±5°
Trendelenburg0-12°
Reverse-Trendelenburg0-12°
CastorsDia 125mm  ( 5″ )
Loading capacity230kg(505 Ibs)
