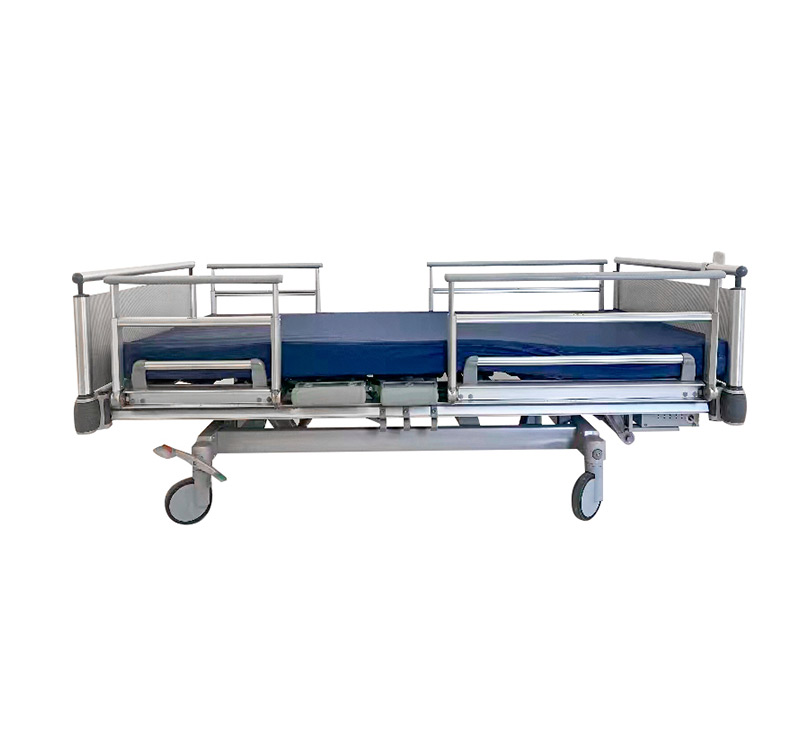

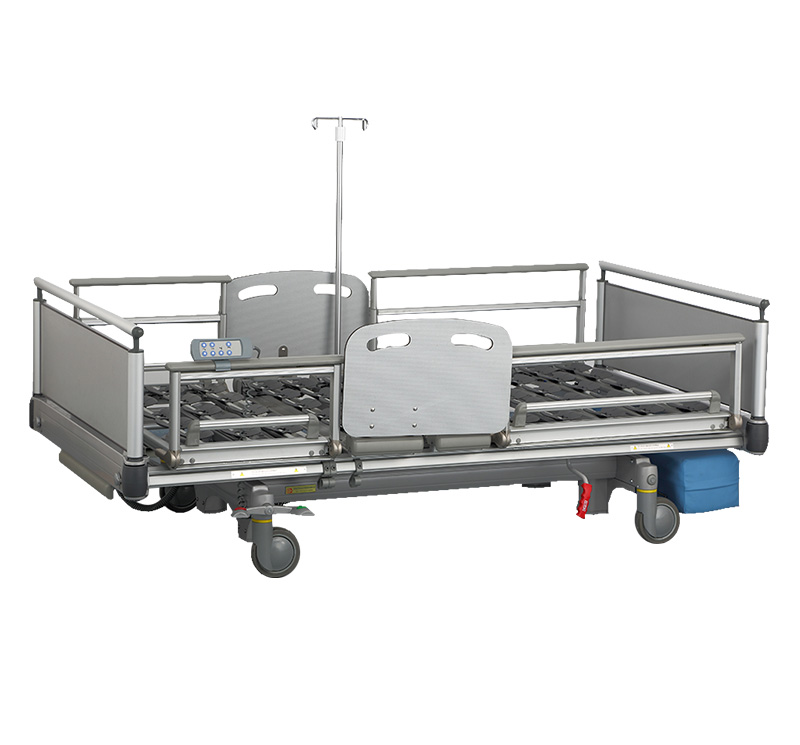

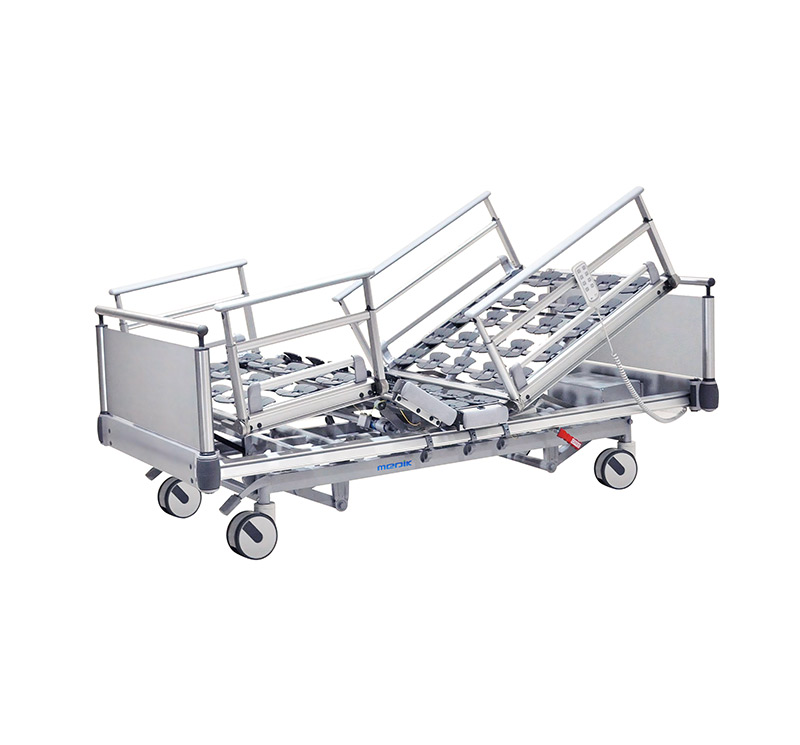

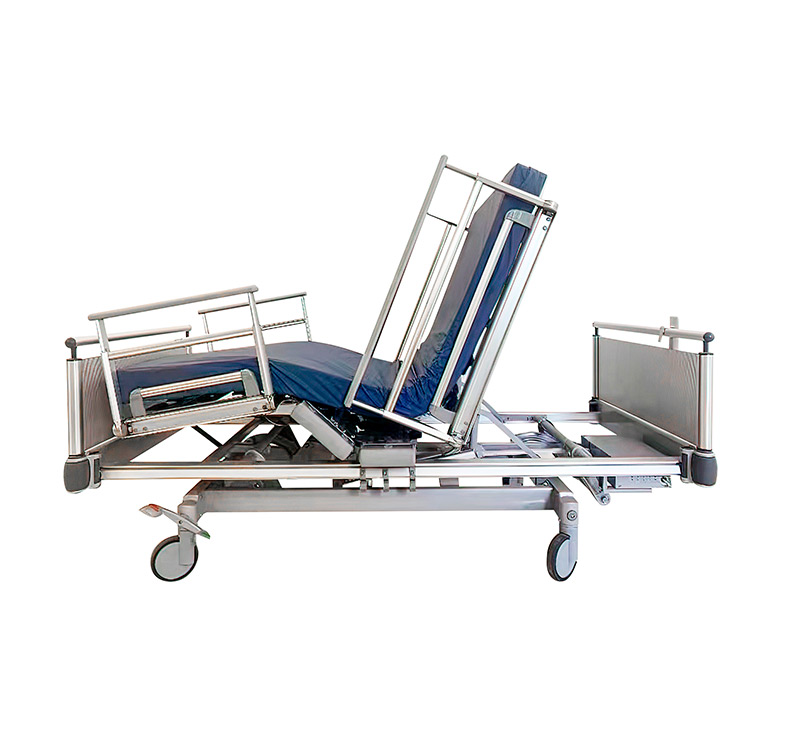

YA-DH8-1 Aluminum Frame Electric Nursing Home Bed

Share:

Model: YA-DH8-1

Overall Size: 2103*990*465-790mm

Loading capacity: 240kg

Functions: Backrest, Footrest, High-low, Trendelenburg, Reverse-Trend

Certificate: CE/ISO

After-sale Service: Online technical support

Warranty:  5-Year on Frame and Welds, and 1-Year on Parts

  • Product Details
  • Downloads

YA-DH8-1 is a medical bed designed with the future concept, The aluminum casting frame makes the bed for long-term use and easy to disinfect. The unique butterfly sleeping platform provides the patient with special comfort that can not be experienced by a single mattress.

Main features

- Whole aluminum alloy frame

- Unique telescopic aluminum railing foldable and can be slid under to the platform

- Unique butterfly sleeping platform can distribute the pressure of the body evenly

- Manual CPR lever located on both sides of the bed

- Bumper caster located on four corners

- Central brake system with 150mm diameter

- Auto-counter to prevent the patient from sliding onto the foot end

- The hand remote control can stuck on the railing

- Detachable head/footboard with easy lock

- Bed extension in a mechanical way (optional)

- Auto-regress to remove the pressure of the abdomen when adjusting the backrest (optional)

- Retractable 5th wheel for direction(optional)

Technical parameter

ModelYA-DH8-1
Overall size2103*990*465mm (82.7″ x 39″ x 18″)
Height adjustment465-790mm (18″ – 31″ )
Back section up/down0-70°
Foot section up/down0-35°
Trendelenburg0-12°
Revere- Trendelenburg0-12°
Loading capacity240kg(530 Ibs)
CastorDia 150mm ( 6″  )
