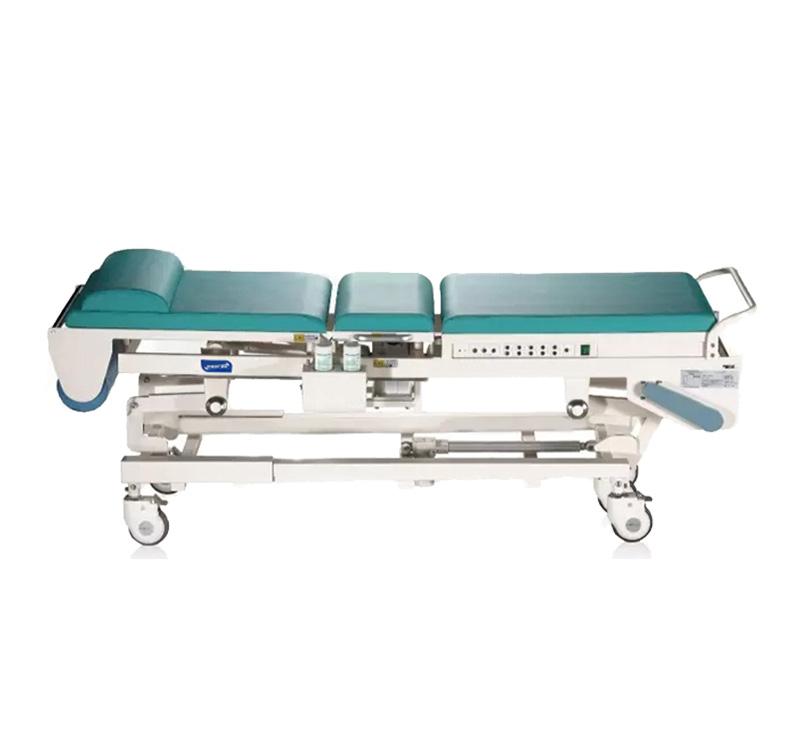

YA-EC-U02 Medical Gynecology Examination Bed

share

Model: YA-EC- U02

Overall Size: 1900*650*590-840 mm

Load Capacity: 175 kg

Product Details

Main features

E-intelligence bed sheet replacing & deviation-correcting system

Ultrasonic coupling agent heater

Vertical adjustment

Backrest adjustment (optional)

Hip section adjustment(optional)

Trendelenburg/Reverse trendelenburg(optional)

Horizontal adjustment(optional)



Technical parameter

Overall size

1900*650*590-840 mm

Back section adjustment

0 ~85°

Height adjustment

590-840 mm

Head overall slope and leg overall slope

0 ~12°

Adjustment value of the height of the hip

0~110mm

Horizontal movement

0~420mm

Whole bed weight

133Kgs

Loading capacity

175kg
