YA-ET301H Hydraulic Medical Exam Table

share

Model: YA-ET301H

Overall Size:1950*660*480-835mm

Load Capacity:225kg

Product Details

Description:

Hydraulic Examination table has a very strong table designed to withstand constant heavy use with minimal maintenance.This Hydraulic Examination table addresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.



Technical parameters:

Model

YA-ET301H

Overall size (L*W*H)

1950*660*480-835mm

Back Section Length

670mm

Body Section Length

1230mm

Load capacity

225kg

Foam Thickness

50mm

Foam Density

36g/m2

Packing

1900*720*560mm (Heavy carton)

N.W./G.W.

65/78kgs

20GP/40GP

32/68pcs

Adjustable Height

480 – 835mm

Backrest adjustable angle

-20°. to +75°



Standard Specification:

The frame feet (*4) make round shape, avoid to hit people.

Height control from 48cm to 83.5cm by hydraulic pumps.

One hydraulic pumps "Power-packer" brand for Hi-Lo function.

Hydraulic examination table Add more material make better designed for some frame parts.

Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.

Retractable castors 75mm for excellent mobility and safety.

Make a new design for triangular parts.

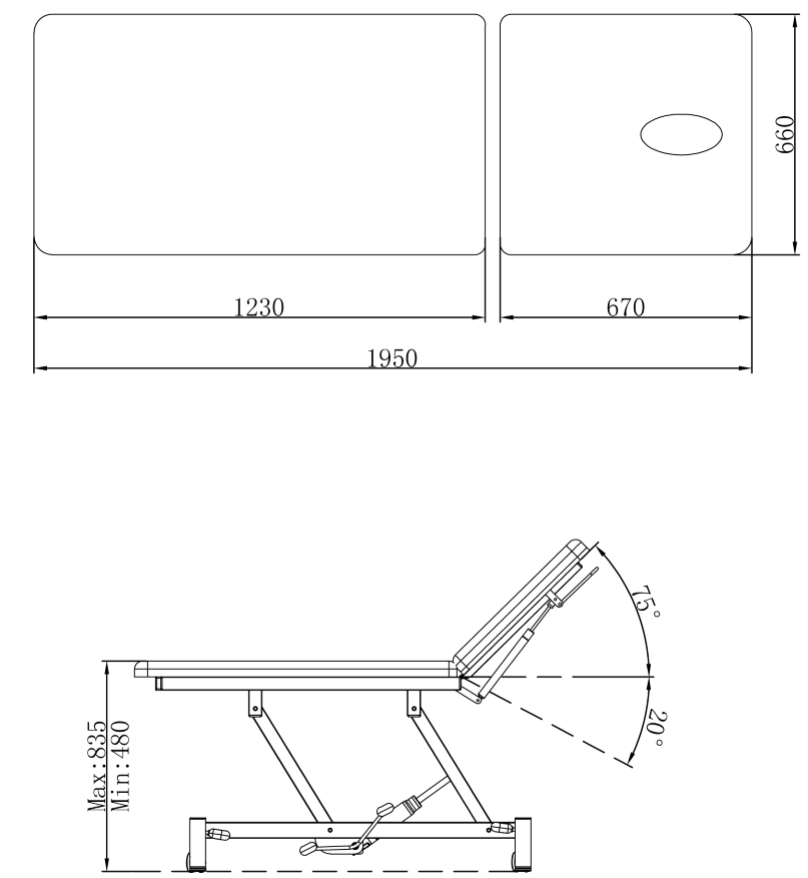

Size picture:

YA-ET301H Hydraulic Medical Exam Table
