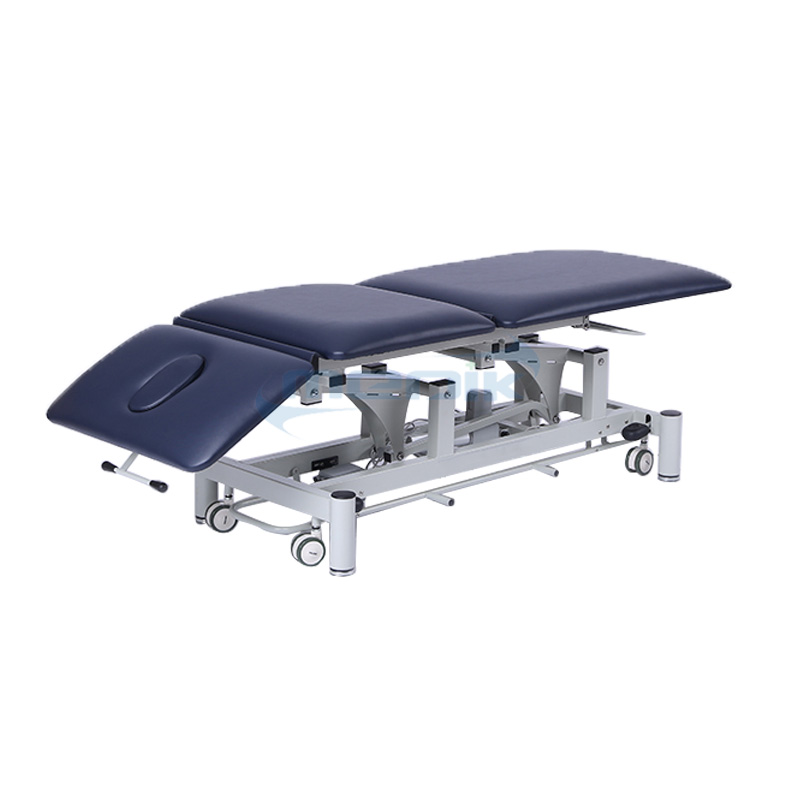

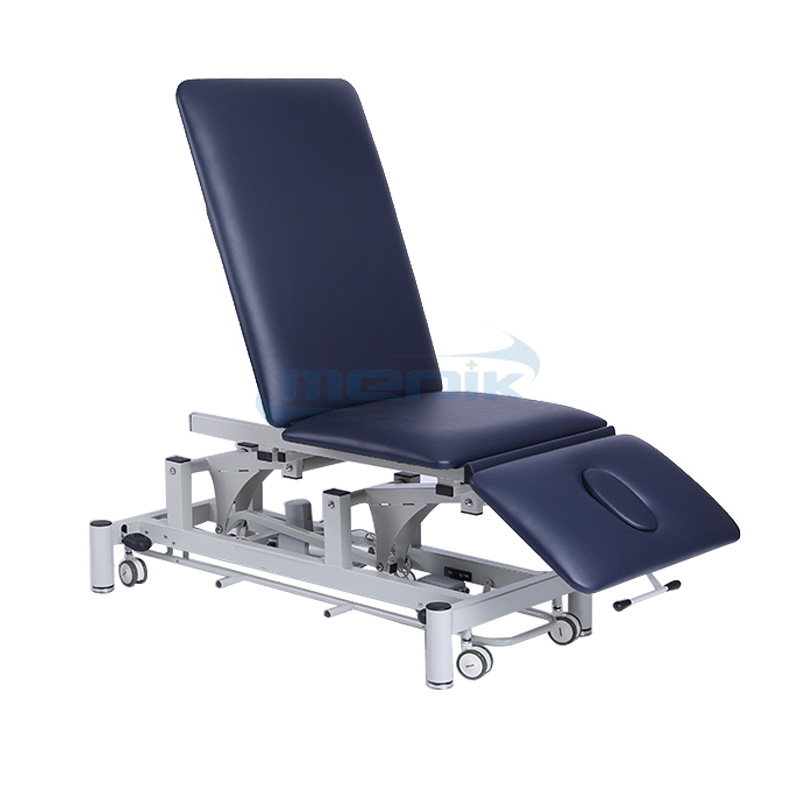

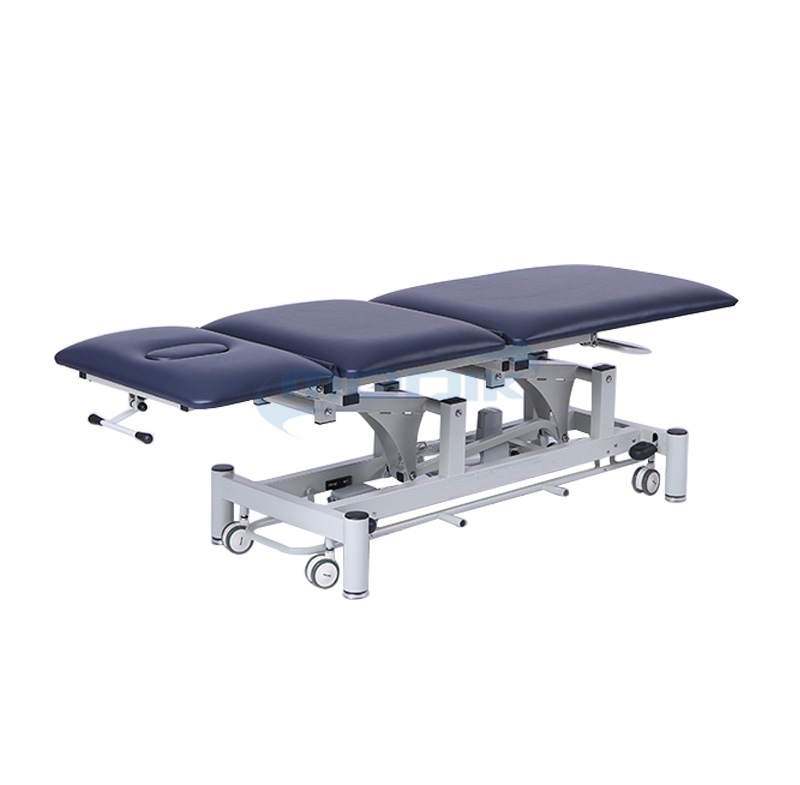

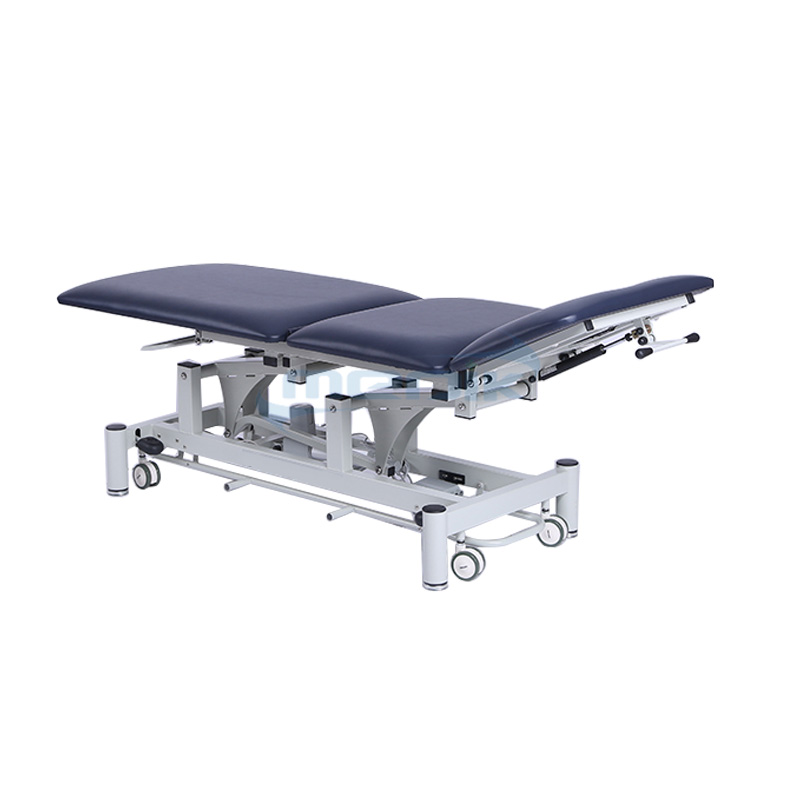

YA-ET302D Electric Medical Treatment Table

share

Model: YA-ET302D

Overall Size:195 x 66 x (47.5-93)cm

Load Capacity:225kg


Product Details

Description:

Electric medical treatment  table has a very strong table designed to withstand constant heavy use with minimal maintenance.

This Electric medical treatment  table addresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.


Technical parameters:

Model

YA-ET302D

Overall size (L*W*H)

1950*660*475-930mm

Backrest Length

930mm

Middle Section Length

540mm

Head Section Length

400mm

Load capacity

225kg

Foam Thickness

50mm

Foam Density

36g/m2

Packing

1860* 720*560mm

N.W./G.W.

70/83kgs

Adjustable Height

475 – 930mm

Head section adjustable

-45° to +40°

Back section adjustable

0° to +80°


Standard Specification:

One electric motor, standard supports "Timotion" brand for Hi-Lo function.

The frame feet (*4) make round shape, avoid to hit people.

Add more material ad better designed for some frame parts.

Retractable castors 75mm for excellent mobility and safety.

Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.


Size picture:

YA-ET302D Electric Medical Treatment Table
