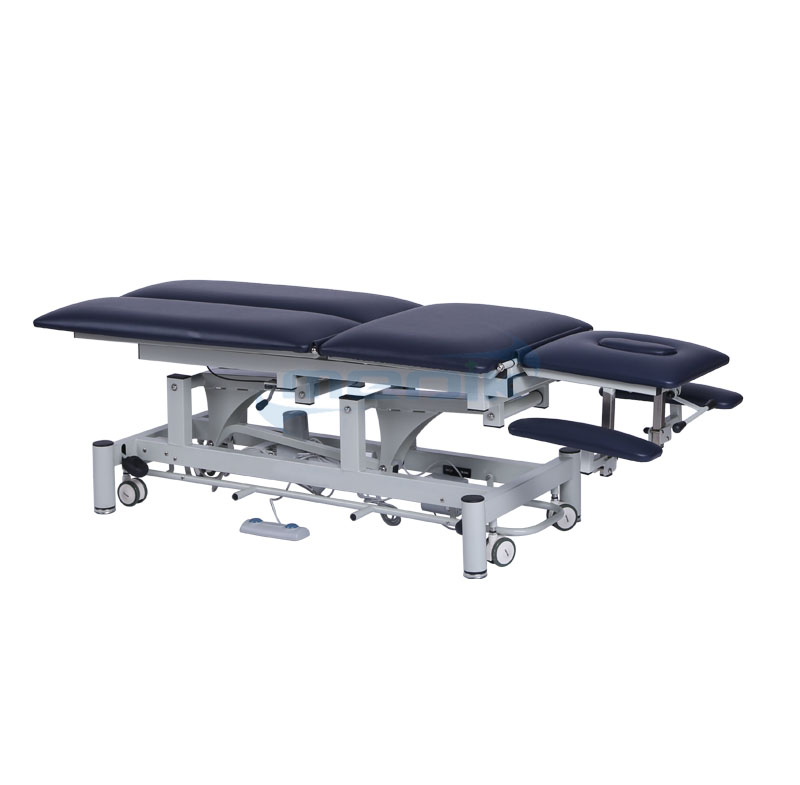

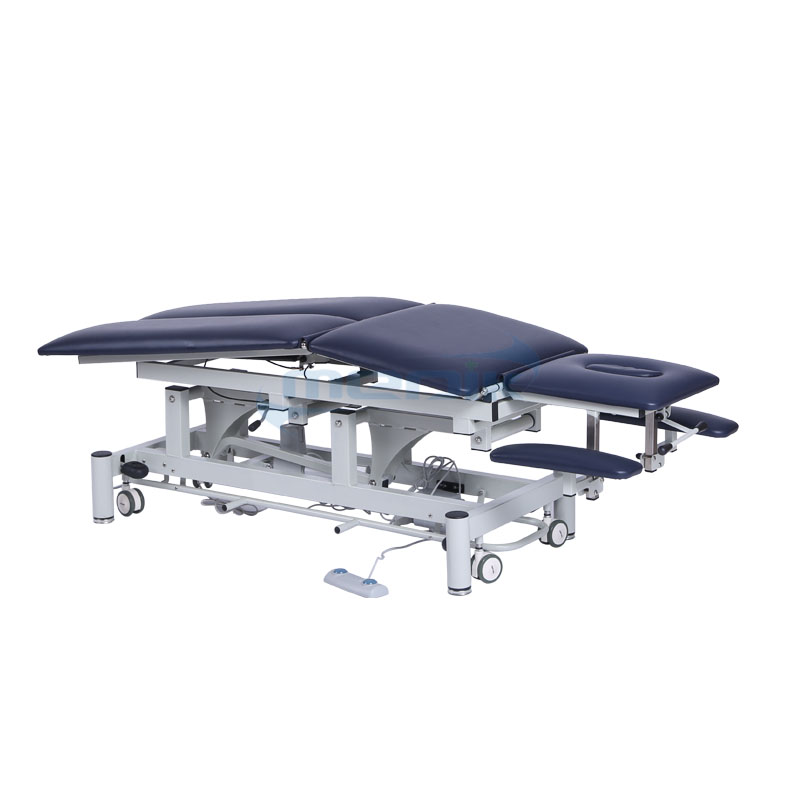

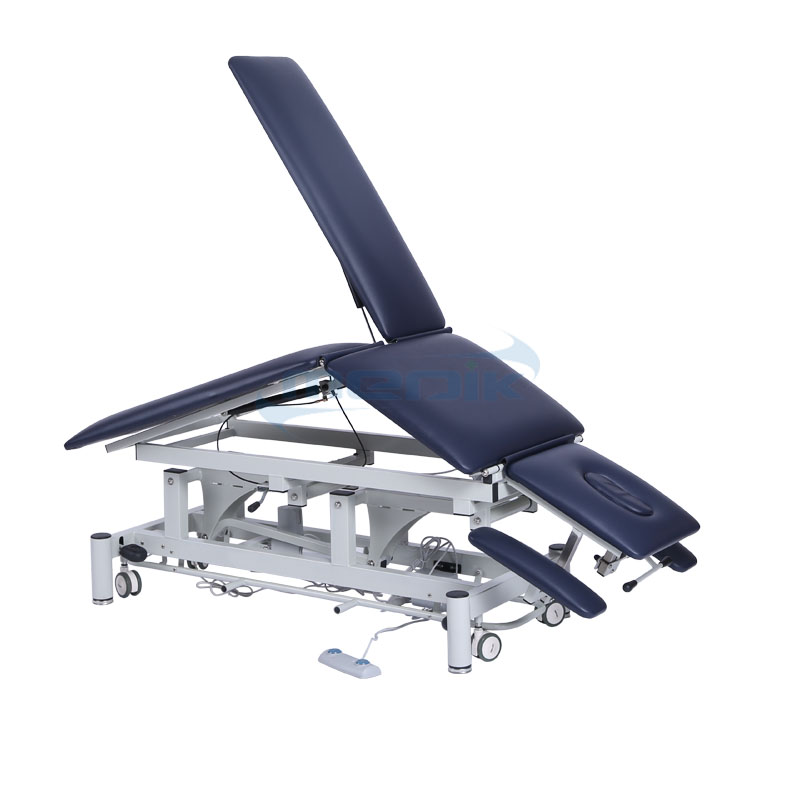

YA-ET304D Electric Medical Treatment Couch Exam Table

share

Model: YA-ET304D

Overall Size:1950*660*500-950mm

Load Capacity:225kg


Product Details

Description:

Medical treatment couch Using Specially designed a split-leg at backrest for more strong function.

Medical treatment couch provides amazing functional and stability, with widest choice for user requirements.

This 6-section medical treatment couch is the complete table offering all features available in modern table design.Designed a stable & movable arm rests.


Technical parameters:

Model

YA-ET304D

Overall size (L*W*H)

1950*660*500-950mm

Backrest Length

960mm

Middle Section Length

510mm

Head Section Length

430mm

Load capacity

225kg

Castor

75mm

Foam Thickness

50mm

Foam Density

36g/m2

Packing

1860 * 720 *560mm

N.W./G.W.

70/83kgs

20GP/40GP

36/72pcs

Adjustable Height

500– 950mm

Head section adjustable

-40° to+45°

Back section adjustable

0° to +70°

Middle section adjustable

0° to + 25°


Standard Specification:

Two electric motors, standard supports "Timotion" brands for Hi-Lo & middle lifting.

The frame feet (*4) make round shape, avoid to hit people.

Hospital examination bed add more material ad better designed for some frame parts.

Adjustable backrest (Split-leg) featuring single gas strut

Round tube table leg and new design for triangular frame parts.

Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.


Size picture:

YA-ET304D Electric Medical Treatment Couch Exam Table
