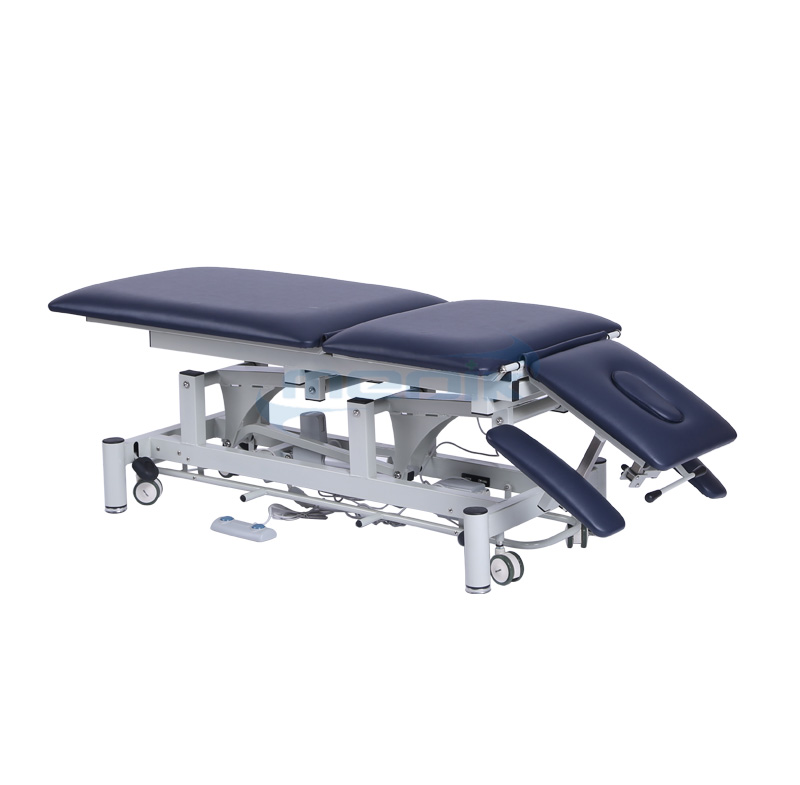

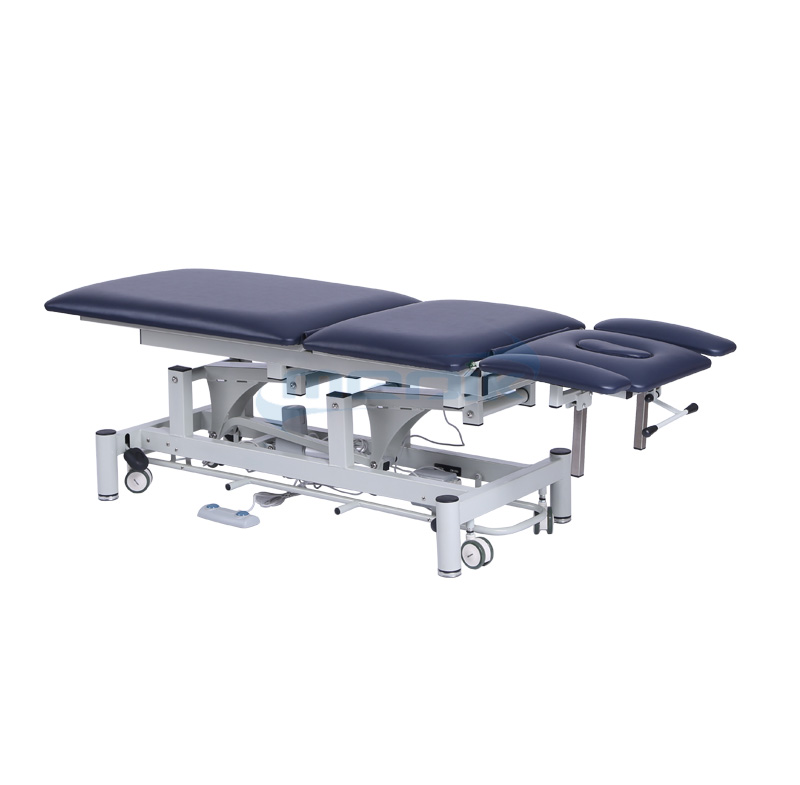

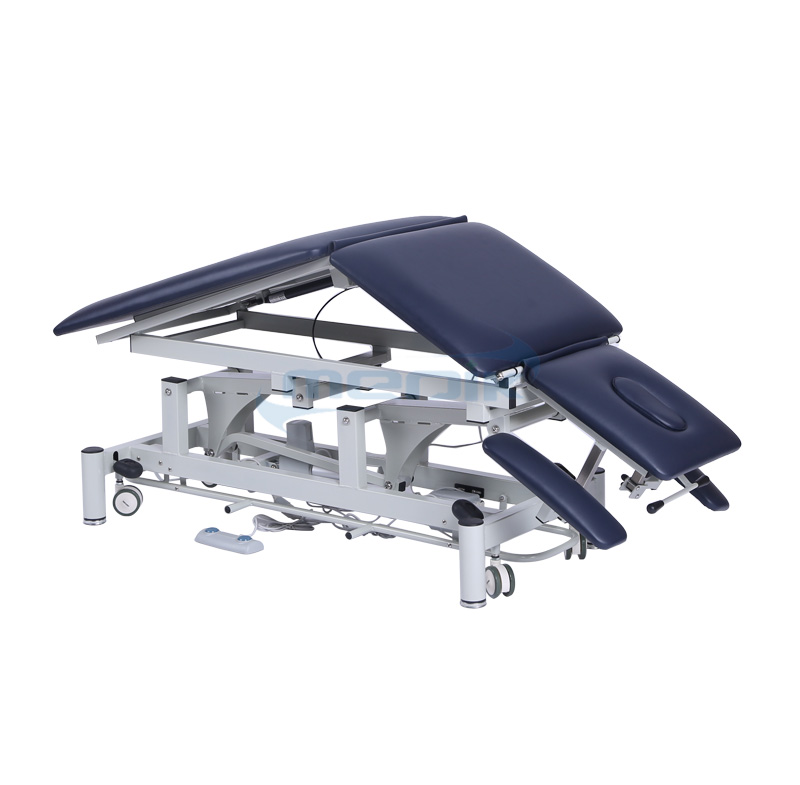

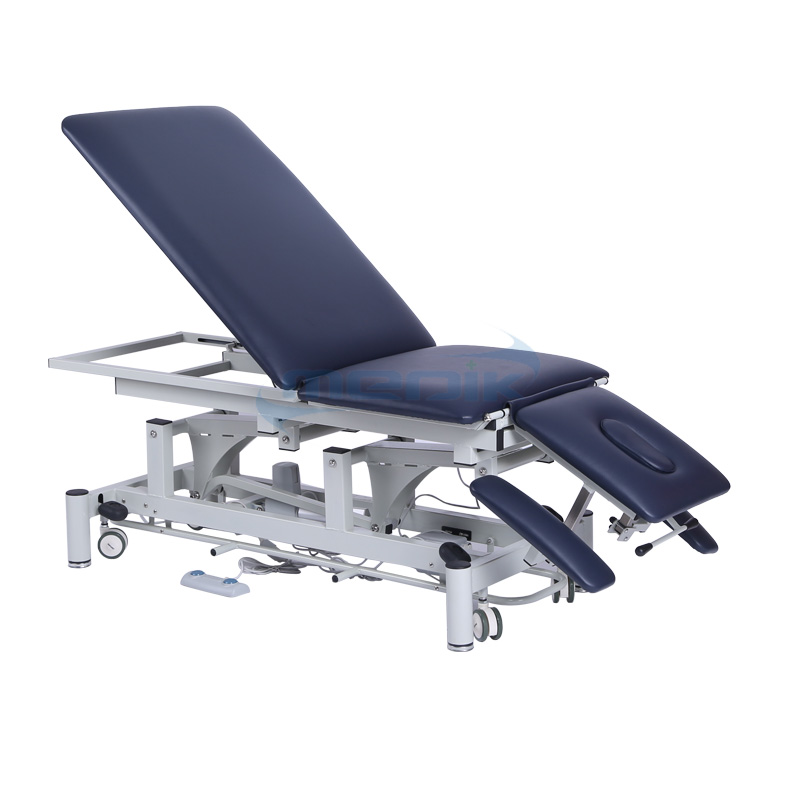

YA-ET303D Electric Medical Exam Table

share

Model: YA-ET303D

Overall Size:1950*660*480-940mm

Load Capacity:225kg


Product Details

Description:

YA-ET303D medical exam table has a very strong table designed to withstand constant heavy use with minimal maintenance.

This Hospital examination table addresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.


Technical parameters:

Model

YA-ET303D

Overall size (L*W*H)

1950*660*480-940mm

Backrest Length

960mm

Middle Section Length

510mm

Head Section Length

430mm

Load capacity

225kg

Castors

75mm

Foam Thickness

50mm

Foam Density

36g/m2

Packing

1860 * 720 *590mm

N.W./G.W.

70/83kgs

20GP/40GP

36/72pcs

Adjustable Height

480 – 940mm

Head section adjustable

-20° to+55°

Back section adjustable

0° to +80°


Standard Specification:

Two electric motors, standard supports "Timotion" brands for Hi-Lo & middle lifting.

Hospital examination table add more material ad better designed for some frame parts.

The frame feet (*4) make round shape, avoid to hit people.

Lift for height variation by footbar system and middle section by foot switch.

Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.


Size picture:

YA-ET303D Electric Medical Exam Table
