Model: YA-ET305D
Overall Size:1900*660*510-960mm
Load Capacity:225kg
Description:
This Adjustable hospital examination bed has a very strong table designed to withstand constant heavy use with minimal maintenance.
This Adjustable medical examination couch addresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.
Technical parameters:
Model | YA-ET306D |
Overall size (L*W*H) | 1900*660*510-960mm |
Head Section Length | 360mm |
Back Section Length | 490mm |
Seat Section Length | 420 mm (*2) |
Leg Section Length | 560mm (* 2) |
Load capacity | 225kg |
Casters | 75mm |
Foam Thickness | 50mm |
Foam Density | 36g/m2 |
Packing | 1950*720*570 |
N.W./G.W. | 90/103kgs |
20GP/40GP | 36/72pcs |
Adjustable Height | 510mm – 960mm |
Head section adjustable | -35° to+55° |
Back section adjustable | 0° to +55° |
Seat section adjustable | 0° to +25° |
Leg section adjustable | 0° to -55° |
Standard Specification:
One electric motor, standard supports "Timotion" brand for Hi-Lo function.
All gas struts standard supports “Stabilus” brands.
The frame feet (*4) make round shape, avoid to hit people.
Adjustable medical examination couch Easy to adjustable arm rest and arm supports, very strong
Round tube table leg and new design for triangular frame parts.
Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.

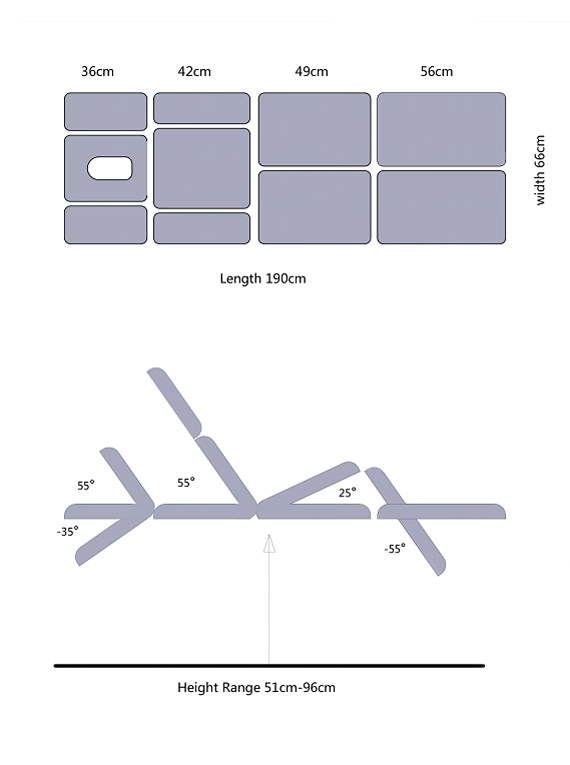

Size picture:
