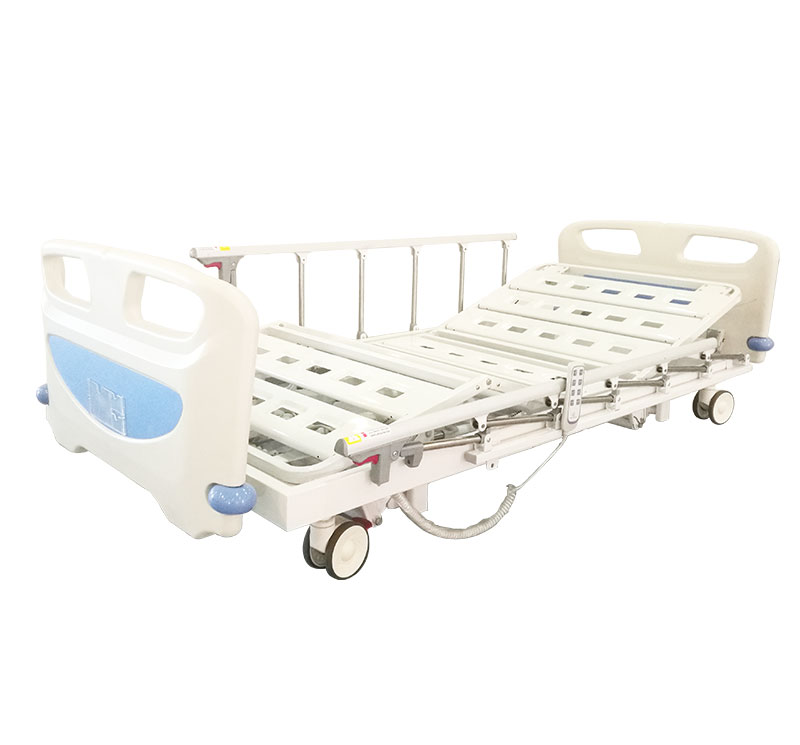

The YA-D3-1 Electric Hospital Bed is a reliable 3-function bed designed for daily patient care in hospitals, clinics, and nursing environments. It allows easy adjustment of the backrest, leg rest, and bed height to improve patient comfort and caregiver efficiency.
With its ultra-low height design, durable frame, and safety side rails, the bed enhances patient safety during use. The smooth electric control ensures convenient operation, making it a practical and cost-effective solution for general healthcare needs.
Main features
- Extra-low bed with a height of 260mm
- ABS head/footboard, detachable with the bumper on four corners
- Hand remote control
- Manual CRR of both side back section.
- Heavy-duty caster, the diameter of 125mm castors. Four castors and two with brakes.
- 10 pieces divided platform to get a smooth curve
- Six columns collapsible aluminum alloy railing
- Battery backup.
- I.V. pole with six IV pole support hole.
- Urine bag hook on both side.
Accessories
- IV stand
- Urine bag hook
- Hand remote controller
Options
- Nurse controller
Technical parameter
| Model | YA-D3-1 |
| Overall size | 2120*1010*260mm (83.4″ x 39.7″ x 10.2″) |
| Back section up/down | 0-75° |
| Foot section up/down | 0-40° |
| Height adjustment | 260-640mm (10.2″ – 25.1″ ) |
| Safe loading capacity | 215kg（473 Ibs） |
