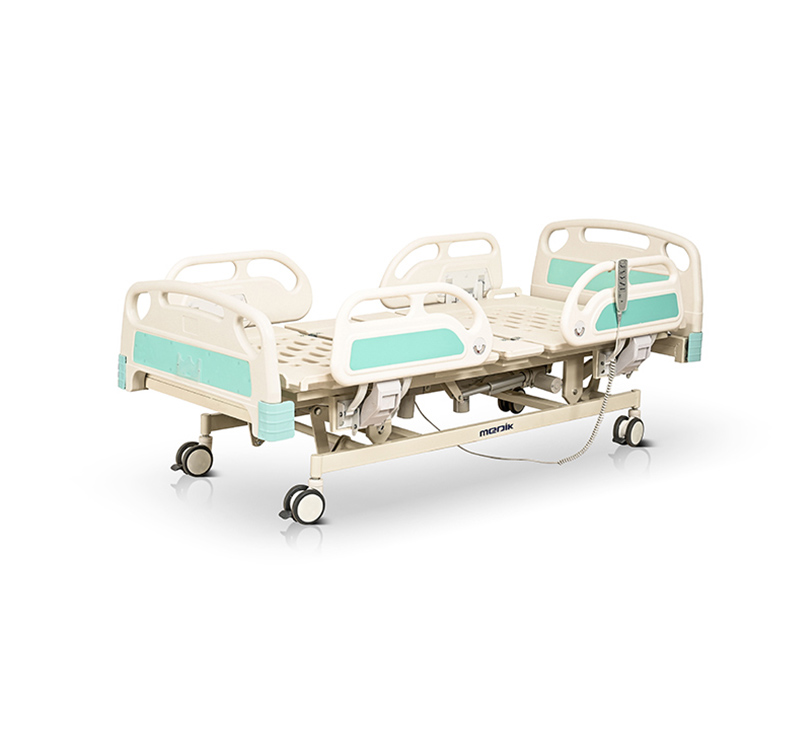

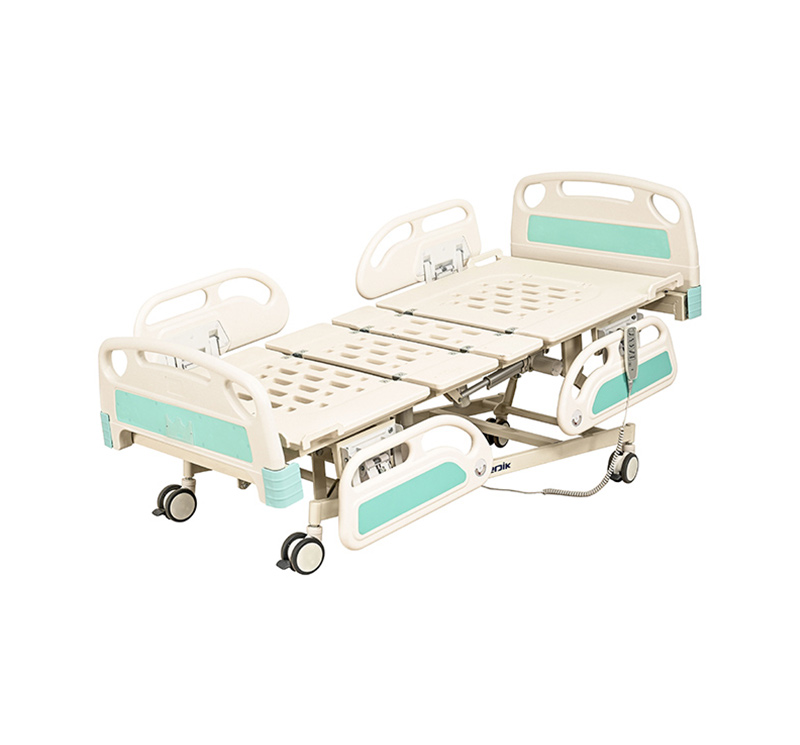

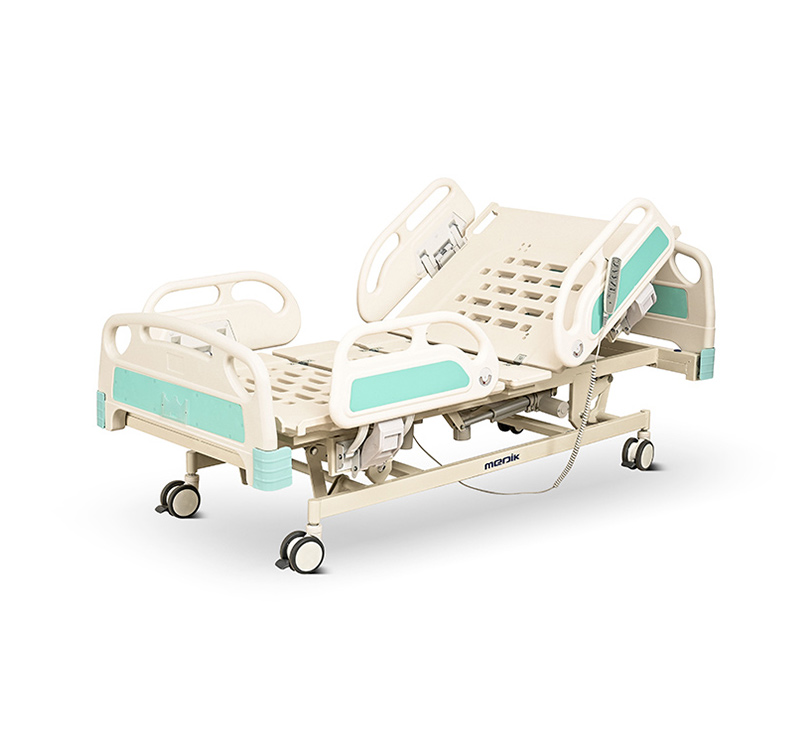

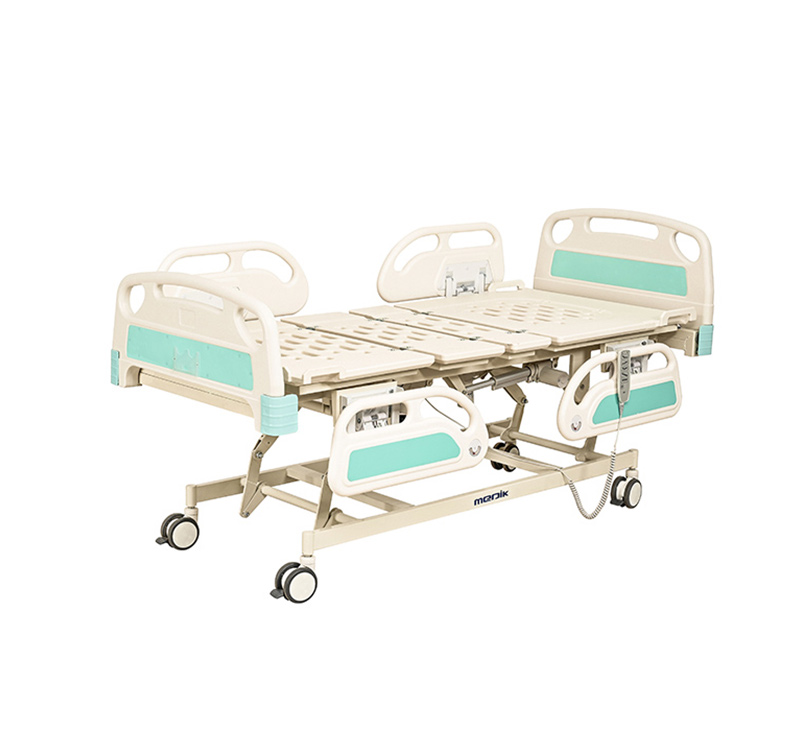

YA-D5-4 Five Function Hospital Electric Bed

Share:

Model: YA-D5-4

Overall Size: 2240*1060*500-780mm

Safe Working Load: 225kg

Functions: Backrest, Footrest adjustable, High-Low, Trendelenburg, Reverse Trendelenburg

Color:  Green, Blue, Yellow

Motor:  Jiechang motor ( Linak, Timotion, Dewert motor option)

Warranty:3-Year on Frame and Welds, and 1-Year on Parts

After-sale Service: Online technical support

Certificate: CE / ISO

Customization:  Available


  • Product Details
  • Downloads

YA-D5-4 is an economical five-function electric hospital ICU Trendelenburg bed. The remote control controls all movements, It is a recovery platform that can perfectly serve as the hospital's ICU bed with the below excellent features.

Main features

- Four split side rails, drop down under the platform

- Hand remote control

- Detachable head/footboard with easy lock

- Caster diameter of 125mm with brakes

- Bumper caster on four corners

- Auto-counter to prevent the patient from sliding onto the foot end

- With an angle indicator embedded in the railing for back and Trendelenburg adjustment(optional)

- Manual CPR on both sides(optional)

- Detachable head footboard for emergency operation

Technical parameter

ModelYA-D5-4
Size2240*1060*500mm (88.1″ x 41.7″ x 19.6″)
Lying surface:2045* 900mm (80.5″ 35.4″ )
High-Low:500-780mm (19.6″ – 30.7″ )
Back section adjustable0° to 75°
Knee section adjustable0° to 40°
Trendelenburg0° to 12°
Reverse trendelenburg0° to 12°
Safe working load170kg
Max working load225kg (496 Ibs)
