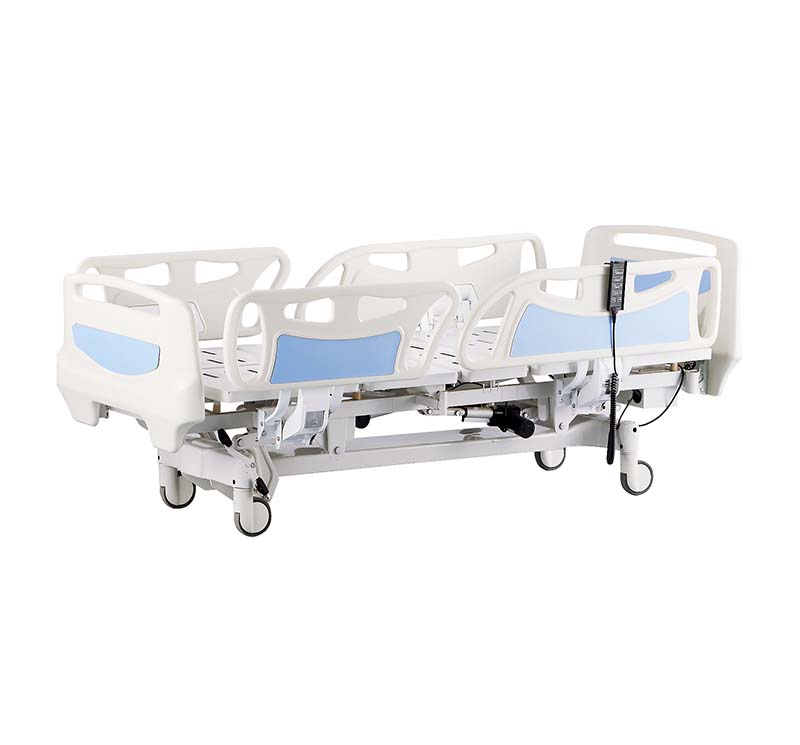

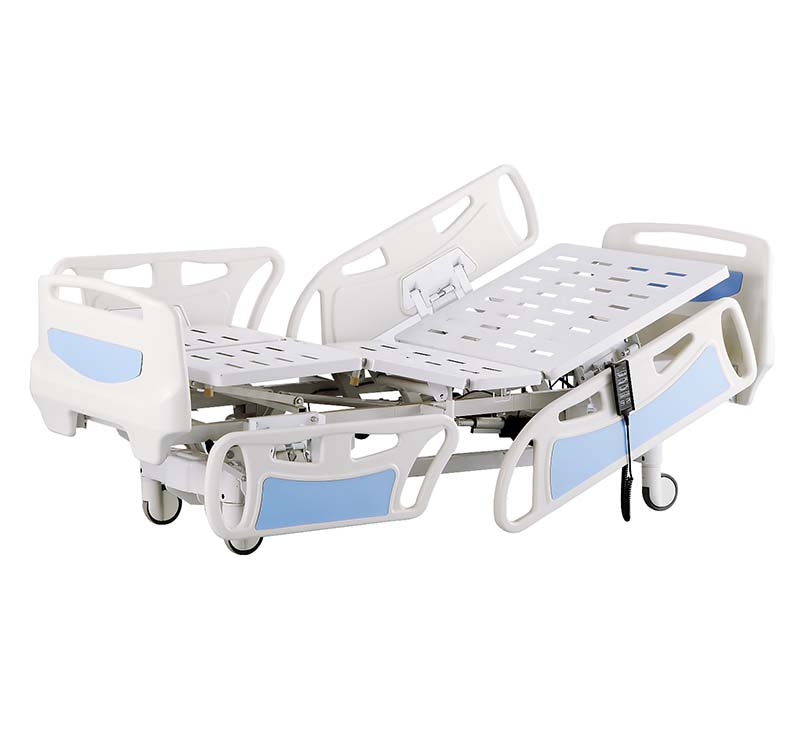

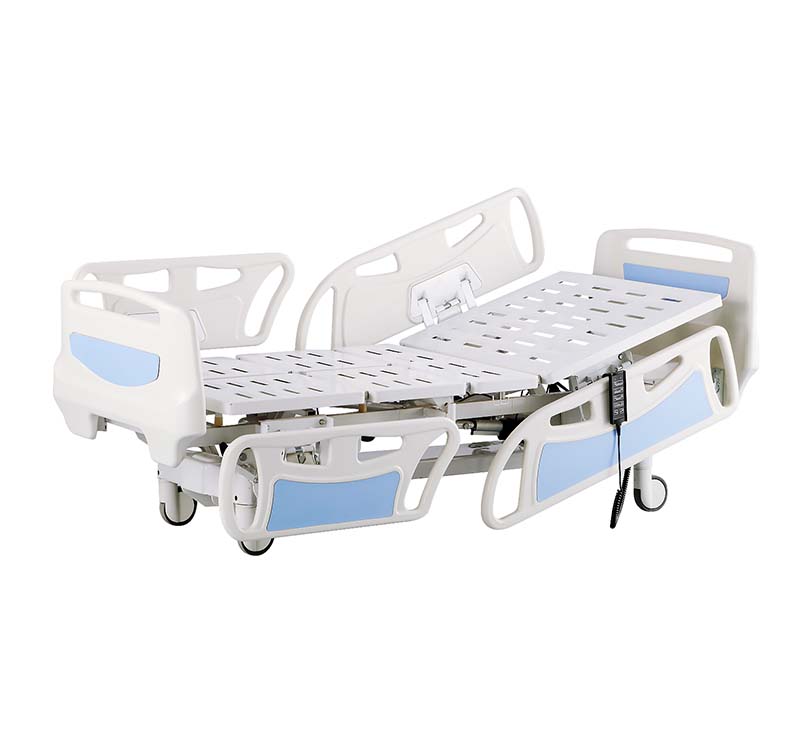

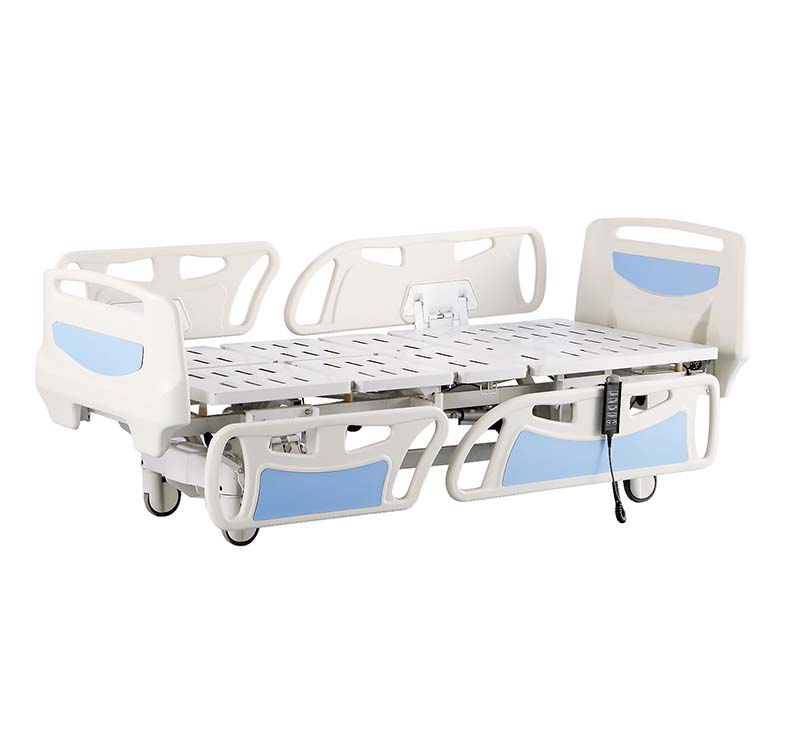

YA-D5-6 Electric Hospital Room Bed With Railing Control

Share:

Model: YA-D5-6

Overall Size: 2200*1060*510-800mm

Safe Working Load: 225kg

Functions: Backrest, Footrest, High-low, Trendelenburg,Reverse Trendelenburg

Color:  Green, Blue, Yellow

Motor:  Jiechang motor ( Linak, Timotion, Dewert motor option)

Warranty:3-Year on Frame and Welds, and 1-Year on Parts

After-sale Service: Online technical support

Certificate: CE / ISO

Customization:  Available


  • Product Details

Specification

- Bed Frame electrophoresis and powder coating

- Bed platform removable ABS platform

- Motor Quiet and robust electric actuators provide reliable operation

- Build-in controller can control all electrically operated functions and movements

- Handrails 4 ABS side rails with Tuck-away model, collapsible below the bed surface

- Head and Footboard ABS material, detachable

- Castors central brake system with a wheel diameter of 125mm

- Controller Hand remote control

- Patient control inner constructed in side rails

- Nurse control hanging on the footboard

- Angle indicator With angle indicator embedded in the railing for back and Trendelenburg adjustment(optional)

- Auto-counter function Auto-counter to provide the patient from sliding onto foot end

- Electric CPR function Control by one single button on the side rails

Technical features

ModelYA-D5-6
Size2200*1060*510mm (86.6″ x 41.7″ x 20″)
Recommended mattress size1960*900mm (77.1″ 34.4″ )
High-Low:510-800mm (20″ – 31.4″ )
Back section adjustable0° to 75°
Knee section adjustable0° to 40°
Trendelenburg0° to 12°
Reverse trendelenburg0° to 12°
Safe working load225kg(496 Ibs)

Standard Accessories

- Head/Foot Board 2 pieces

- Side Rails 4 pieces

- Bed Frame 1 set

- Bed Boards 4 pieces

- Casters 4 pieces

- IV Pole Holder 4 pieces

- IV Pole 1 piece

- Drainage Bag Holders 2 pieces
