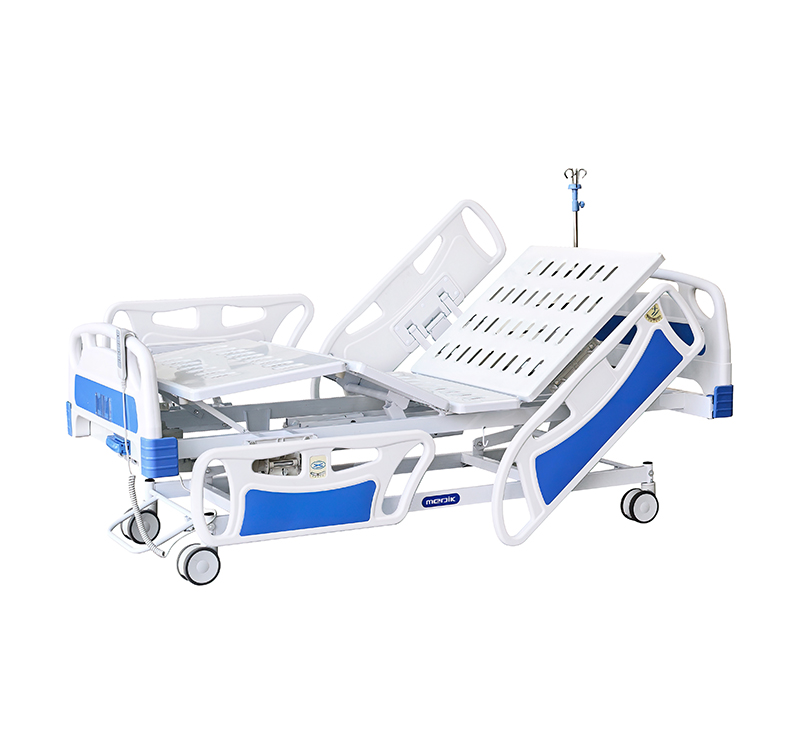

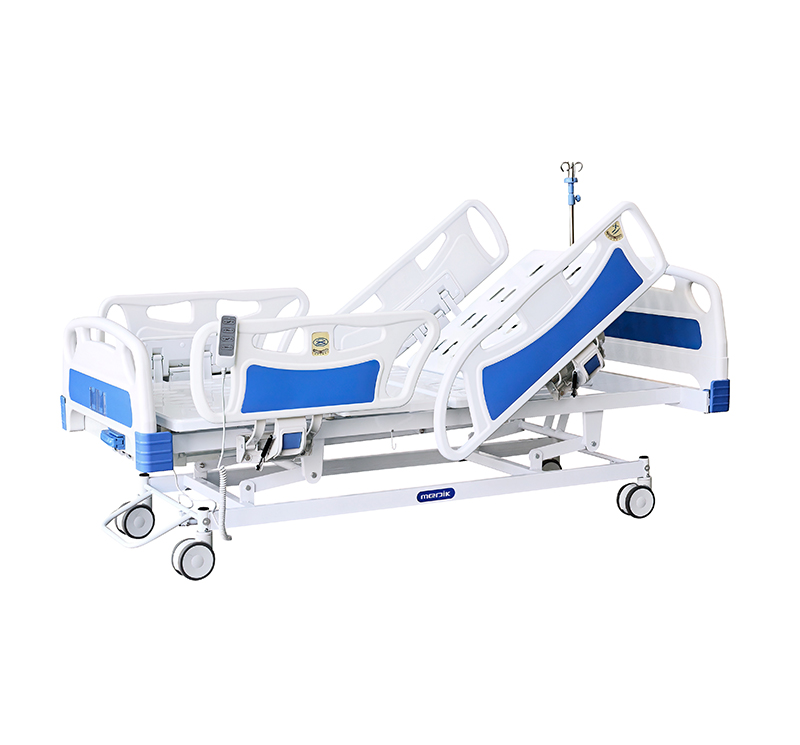

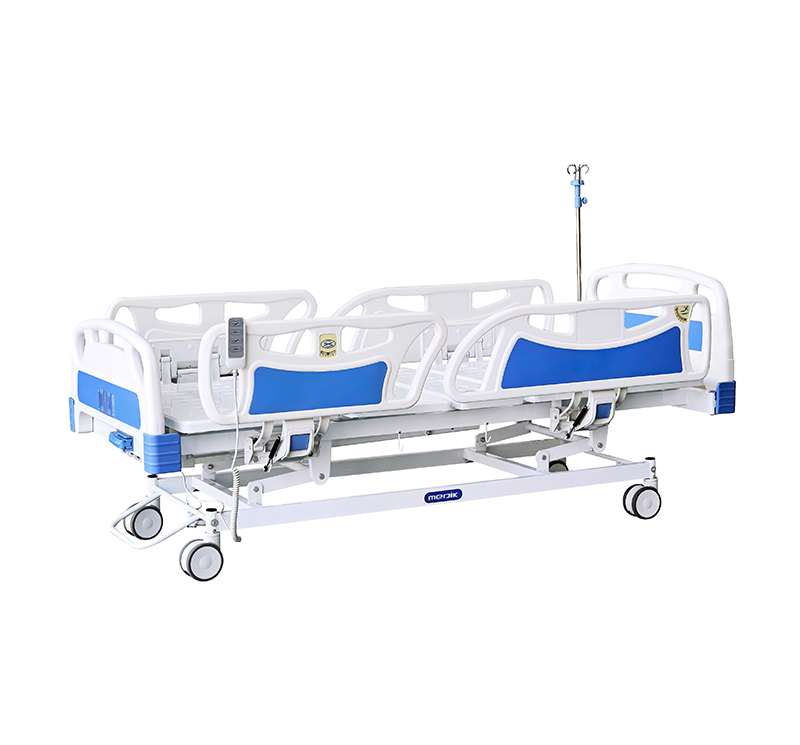

YA-D3-2 Electric Medical Bed With Manual Backup

Share:

Model: YA-D3-2

Overall Size:2230*1100*520-770mm

Safe Working Load: 205kg

Functions: Back section adjustable, Knee section adjustable, High-Low

Special Features: Manual backup (manual crank)

Color options:  Green, Blue, Wood

Motor:  Jiechang motor ( Linak/Timotion/Dewert motor option)

Warranty: 1 year

Service: Online technical support

Customization:  Available

Certificate: CE / ISO


  • Product Details
  • Downloads

YA-D3-2 is an electric hospital bed with manual backup, the special system provides double security in case of power failure or motor damage. So it is an ideal option specially for those area with unstable power supply.

Specification

- MS perforated platform with ventilation hole, molded

- Full-length split side rails with safety gap

- Manual crank as backup for back, foot section, and height adjustment

- Auto-counter

- Detachable head/footboard with easy lock

- Central brake system with wheel diameter of 125mm

- Urine bag hooks on both sides

- Bumpers on 4 corners for protection

- Adjustable IV pole

 Technical parameters

ModelYA-D3-2
Size(L*W*H)2230*1100*520mm (87.8″ x 43.3″ x 20.4″)
Lying surface2045*900mm (80.5″ 35.4″ )
Overall Height520-770mm (20.4″ – 35.4″ )
Back section adjustable0° to 75°
Knee section adjustable0° to 40°
Safe working load205kg(451 Ibs)

Standard Accessories

- Head/Foot Board 2 pieces

- Side Rails 4 pieces

- Bed Frame 1 set

- Bed Boards 4 pieces

- Casters 4 pieces

- IV Pole Holder 4 pieces

- IV Pole 1 piece

- Drainage Bag Holders 2 pieces
