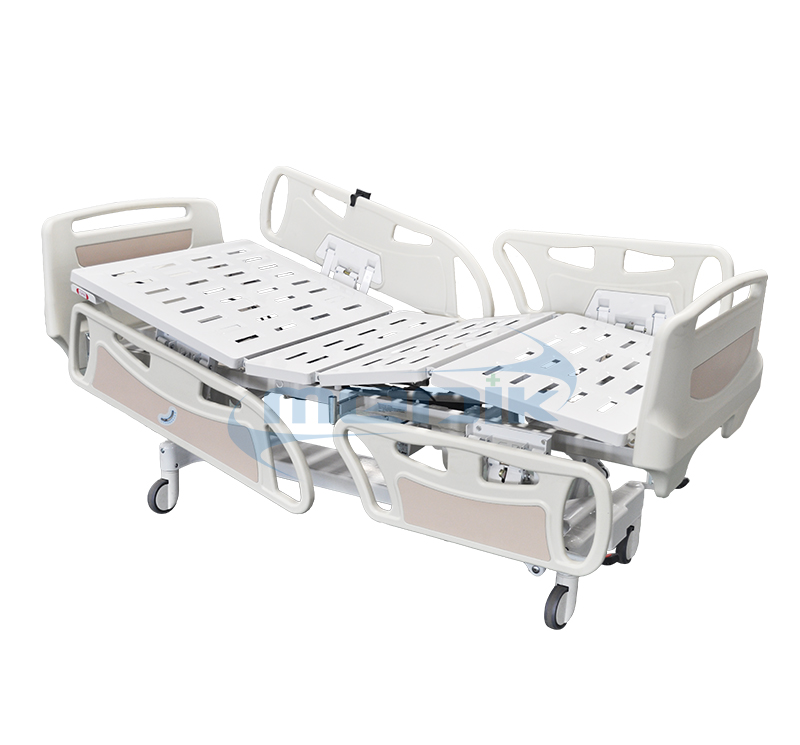

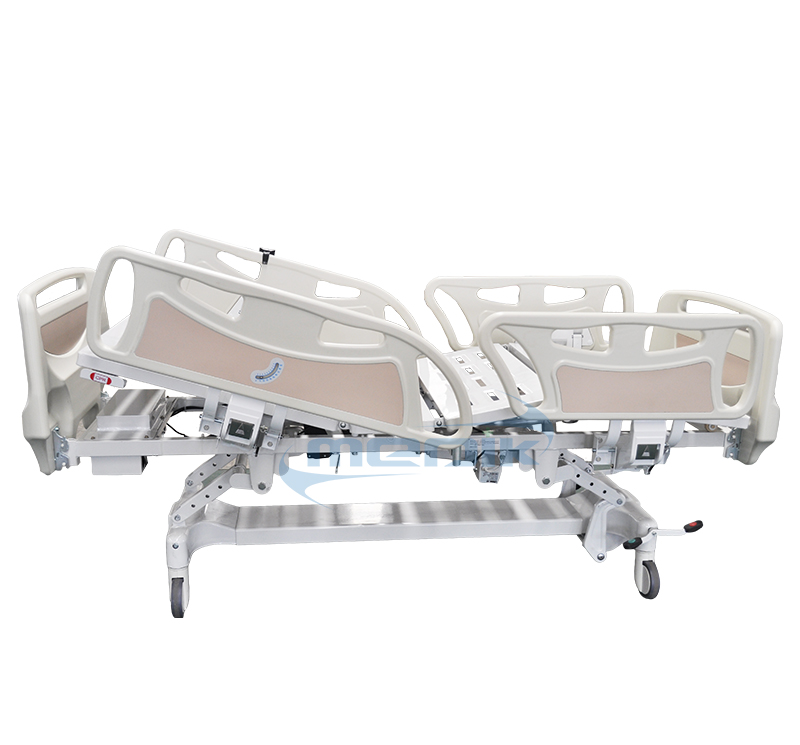

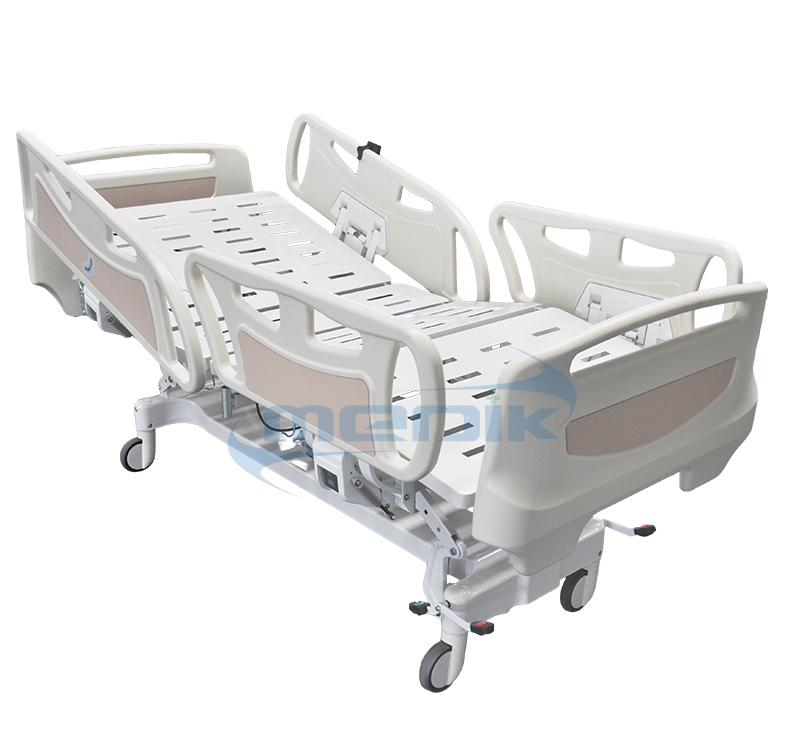

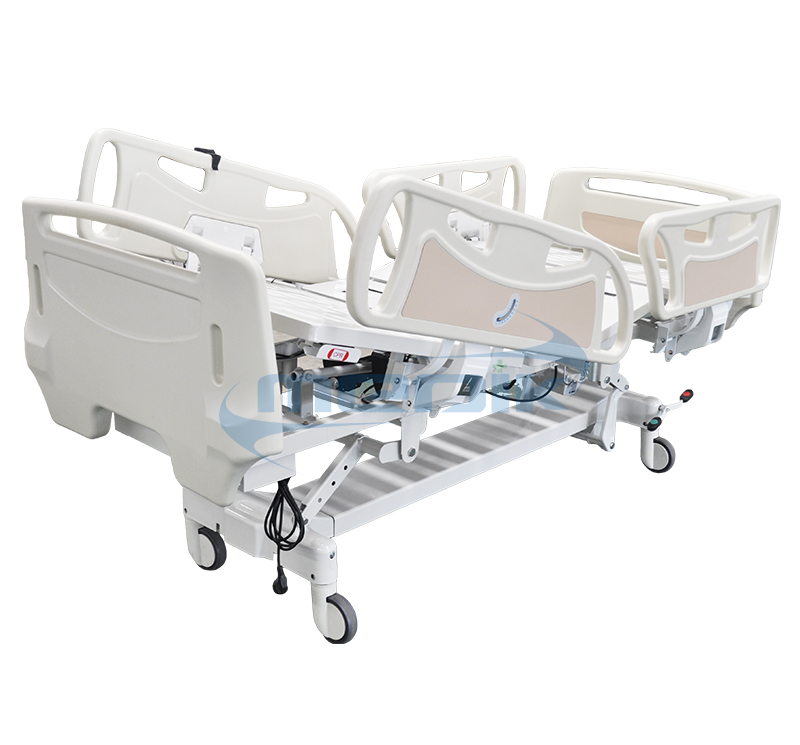

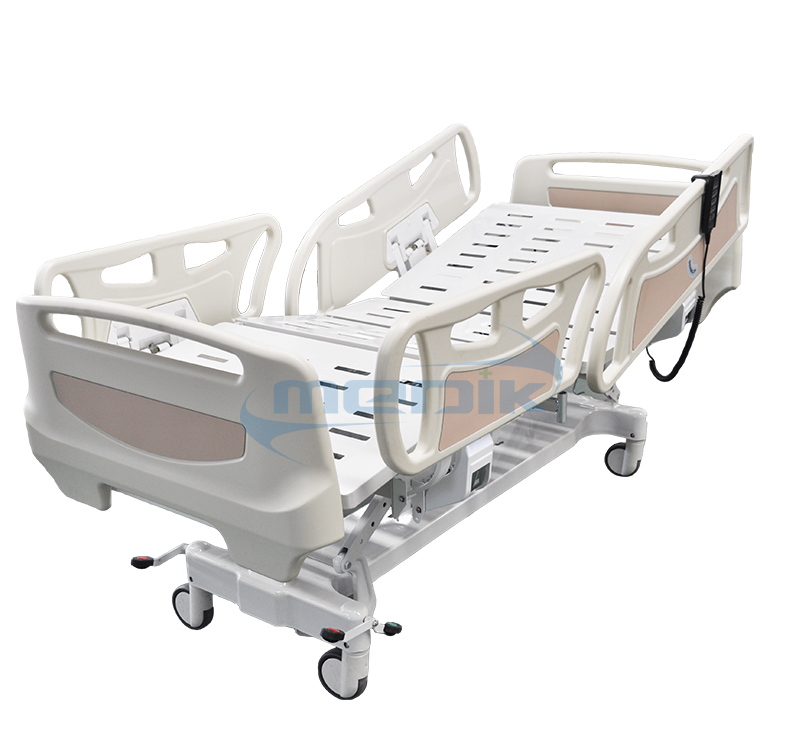

functions electric hospital bed with ABS sleeping platform

Share:

Model:YA-DH5PCS

Overall Size:2200*1060*510-800mm

Safe Working Load: 225kg

Functions:Back secticn adjustable,Foot secticn adjustable,High-low,Trendelenburg,

Anti-trendeleburg


  • Product Details
Technical parameters
ModelYA-DH5PCS
Size2200*1060*510-800mm
Lying surface1960*900mm
Overall Height510-800mm
Back secticn adjustable0° to 75°
Knee secticn adjustable0° to 40°
Trendelenburg0~12°
Anti-trendeleburg0~12°
Safe working load225kg
Specification
Bed FrameElectrophoresis and powder coating
Bed platformABS material bed platform
MotorQuiet and robust electric actuators provide reliable operation
Hand remote controller of all electrically operated functions and movements
HandrailsFour split side rail,drop down under the bed platform
Head and Foot boardDetachable wooden head/foot board with easy lock
CastorsCentral brake system with wheel diameter of 125mm
Special Features
Auto-counter functionAuto-counter to provide the patient from sliding onto foot end
Manual CPRManual CPR on both sides(optional)
Angle indicatorWith angle indicator embeded in the railing for back and trendenleburg adjustment(optional)
Standard Accessories
Head/Foot Board2 pieces
Side Rails4 pieces
Bed Frame1 set
Bed Boards4 pieces
Casters4 pieces
IV Pole Holder4 pieces
IV Pole1 piece
Drainage Bag Holders2 pieces
