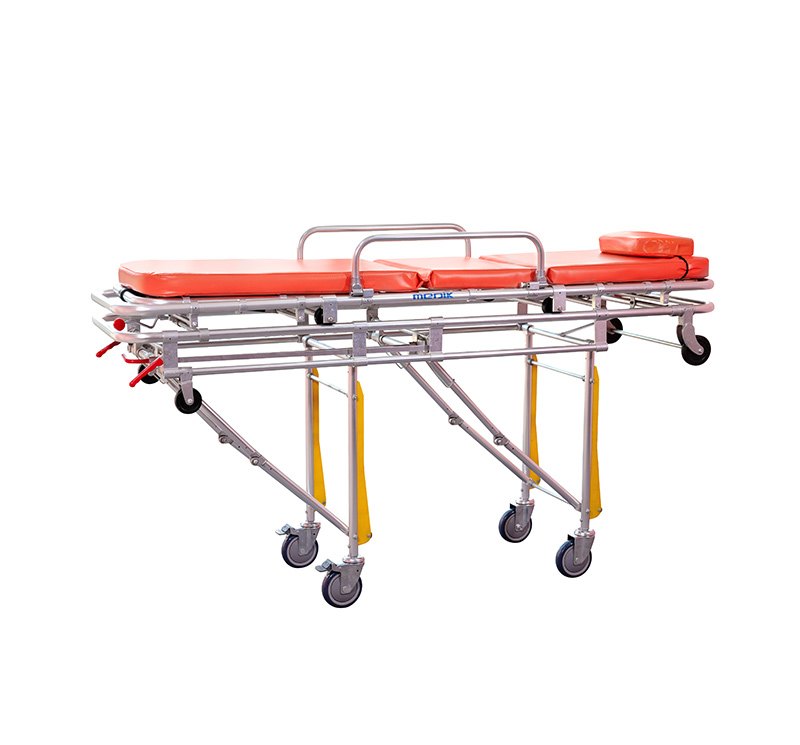

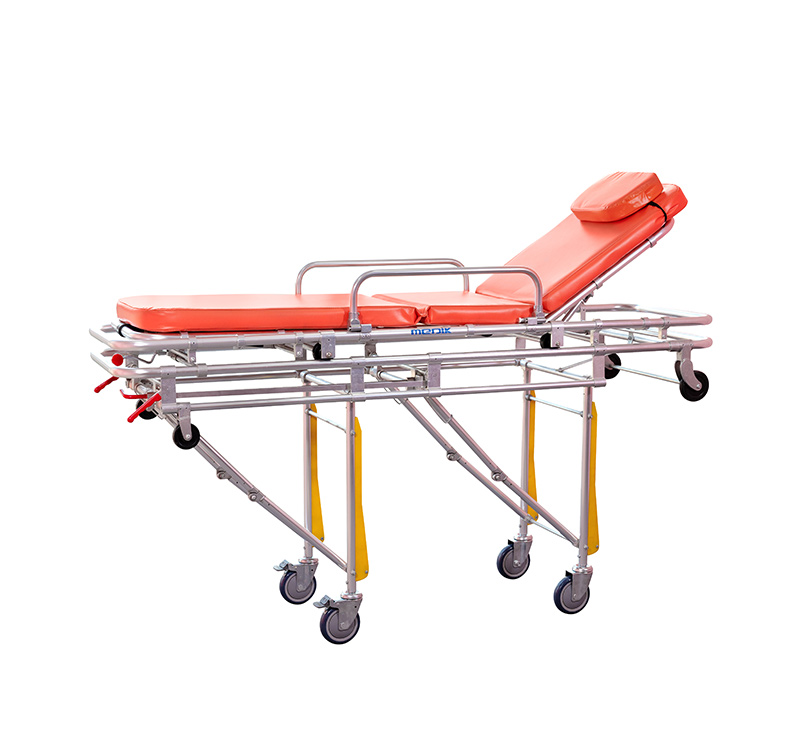

YA-AS01 Collapsible Ambulance Stretcher

Share:

Model: YA-AS01

Overall size(High position): 1960*550*980mm

Ideal Use: Ambulance, EMT, EMS

Material: Aluminum Alloy

Certificate: ISO/CE

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details
  • Downloads

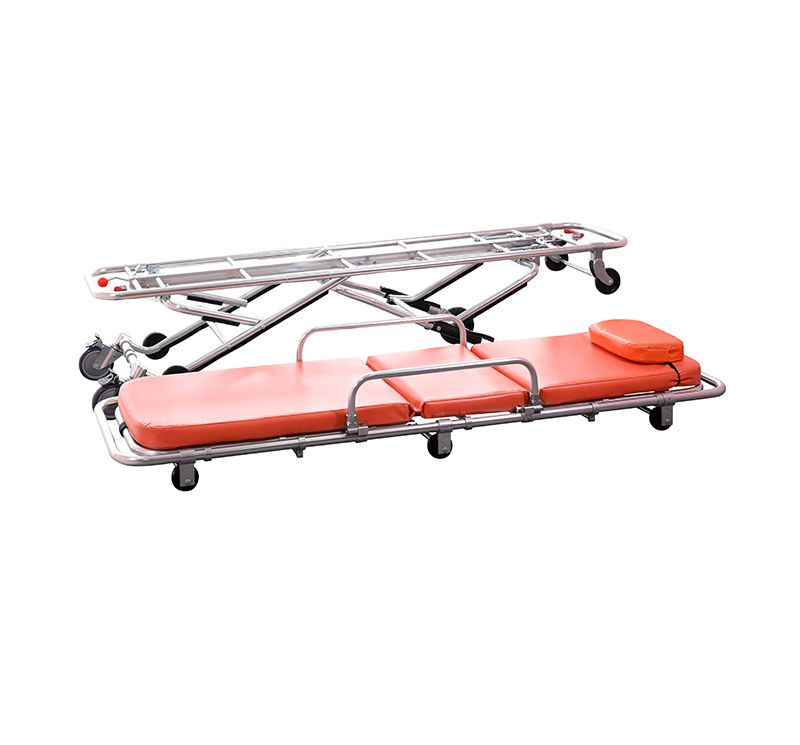

The YA-AS01 ambulance stretcher with the removable stretcher surface offers excellent maneuverability. The back section, leg section and height can be adjusted to meet different situations. It can flexibly transport the injured in various occasions such as gymnasiums, fields, and emergency rooms, lightweight and convenient.

Main features

- These automatic loading ambulance stretchers are made from high-strength aluminum alloy.

- The foam cushion and the adjustable back, allow the maximum comfort.

- It is easy to operate, one person can operate and send the patient (with this stretcher) to the ambulance vehicle.

- The handles control the mechanical foldaway legs on one end of the stretcher.

- The legs can be folded under the stretcher automatically when loading onto the vehicle.

- Also the stretcher can be locked by the security devices on the ambulance vehicle.

- This type of stretcher can be characterized as lightweight, durable, safe, and easy to operate.

Technical parameter

ModelYA-AS01
MaterialHigh-strength aluminum alloy
Size(Low position)1960*550*340mm
Size(High position)1960*550*980mm
Backrest adjustable0-65°
Footrest adjustable0-40°
Load Capacity160kg
