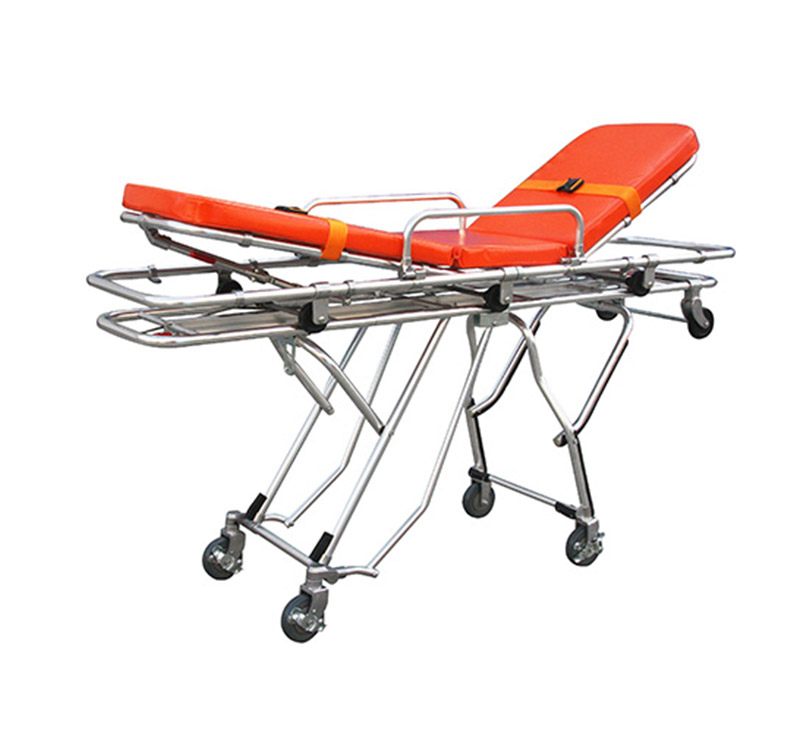

YA-AS02 Automatic Loading Ambulance Stretcher

Share:

Model: YA-AS02

Overall size(High position): 1900*550*700mm

Ideal Use: Ambulance, EMT, EMS

Material: Aluminum Alloy

Certificate: ISO/CE

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details
  • Downloads

YA-AS02 is an ambulance transfer stretcher made of high-quality aluminum alloy. It is convenient for one person to transport the patient to the ambulance. Just press the handle and the legs can be folded when getting into the ambulance. The structure is light and flexible, it is widely used in various places.

Main features

- This automatic loading stretcher is made of high-strength aluminum alloy.

- The durable foam cushion and adjustable back provide maximum comfort.

- Easily handled by one person.

- The mechanical foldaway legs are controlled by the handles on one end of the stretcher.

- And the legs can be folded under the stretcher automatically when loading onto the vehicle.

- The stretcher can be locked by the fixing devices (included) when on the ambulance or transporting vehicle.

- This type of stretcher can be characterized as light weight, durable, safe and easy to operate.

-Support for IV stand included

Technical parameter

ModelYA-AS02
Size (High position)1900*550*700mm
Size (Low position)1900*550*250mm
Back section adjustable0 - 75°
Loading capacity159kg
Carton Size (1pc/carton)1950 * 620 * 260mm
N.W.40kg
G.W.46kg
