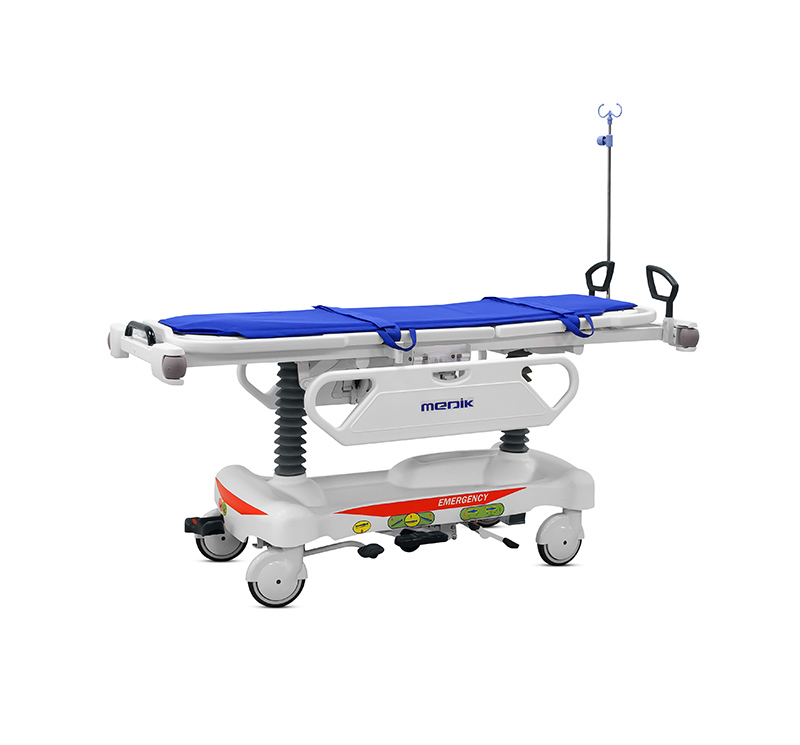

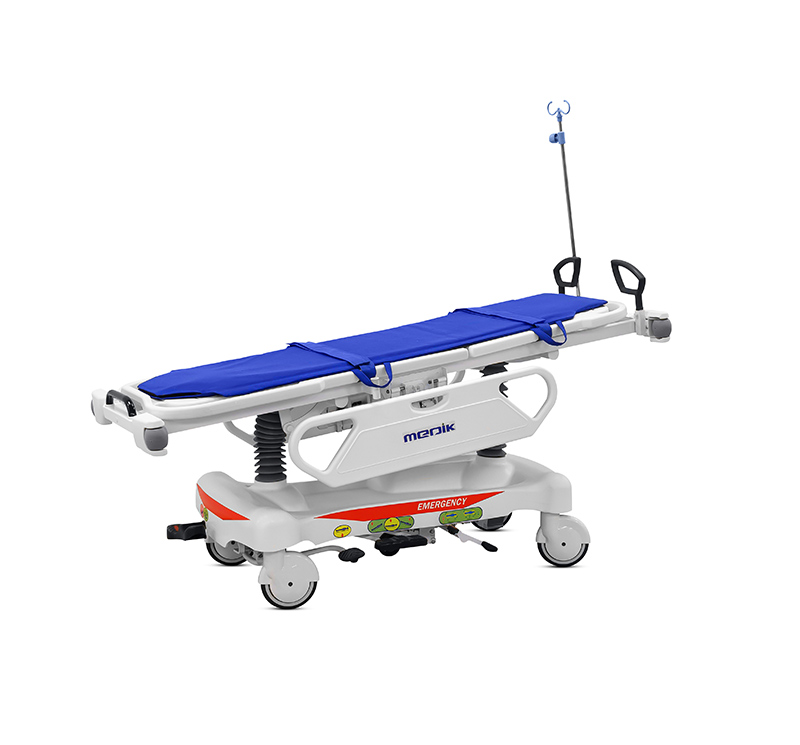

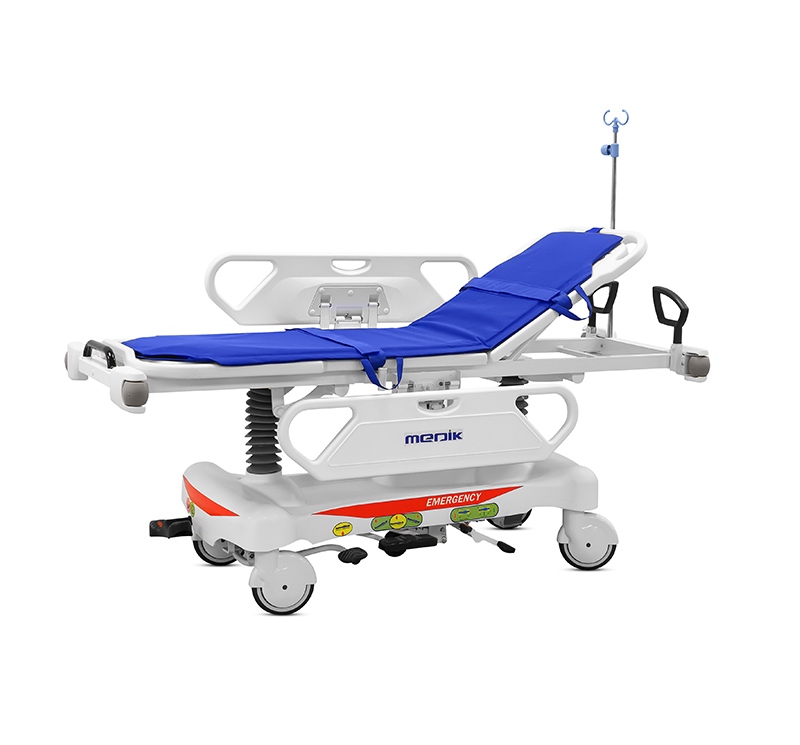

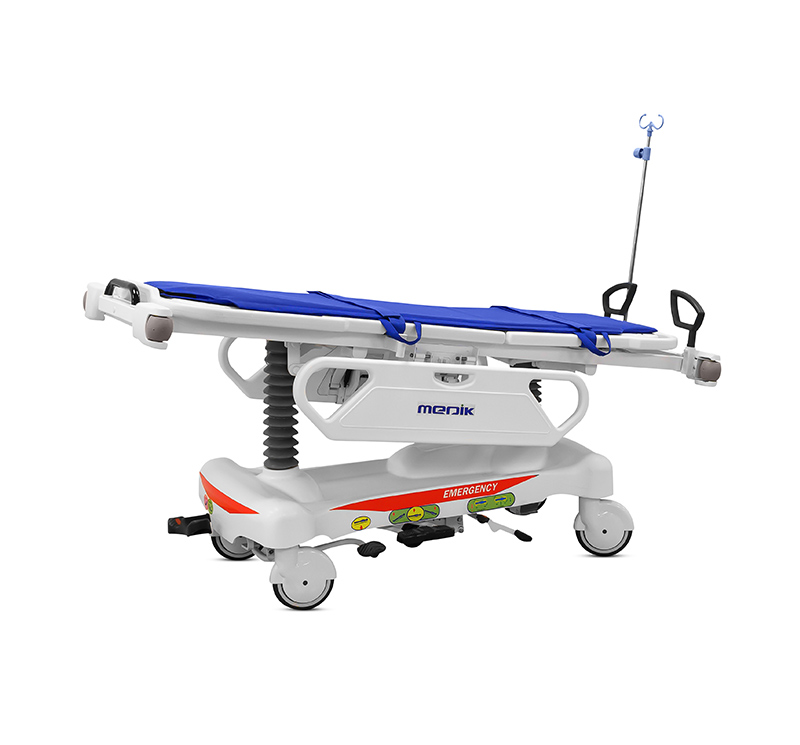

YA-PS04 Patient Transfer Trolley

Share:

Model: YA-PS04

Overall Size: 2100 * 720 * 610~910mm

Loading capacity: 180kg

Functions: Back section adjustable, High-low, Trendelenburg / Reverse Trendelenburg

Certificate: ISO/CE

After-sale Service: Online technical support

Warranty:  3-Year on Frame and Welds, and 1-Year on Parts


  • Product Details
  • Downloads

YA-PS04 is a standard hydraulic patient stretcher designed for patient comfort and caregiver convenience that meets any healthcare facility's needs. Its ergonomically positioned handles make it easy to maneuver.

Feature

- Metal parts coated with an electrostatic epoxy-polyester powder

- IV pole and protective bumpers on all corners

- 200mm diameter castors capable of turning 360°

- Trendelenburg and reverse Trendelenburg are controlled with a hydraulic pump

- Designed ABS plastic base cover is dustproof and can be placed in oxygen cylinders

- Body fixing strap can prevent the patient from shaking during the movement

Technical parameter

ModelYA-PS04
Overall size(L*W*H)2100 * 720 * 610mm (82.5″ x 28″ x 24″)
Height adjustment610~910mm (24″ – 36″ )
Back section adjustment75°±5°
Trendelenburg0-15°
Reverse trendelenburg0-15°
CastorDia 150mm ( 6″ )
Loading capacity180kg(395 Ibs)
