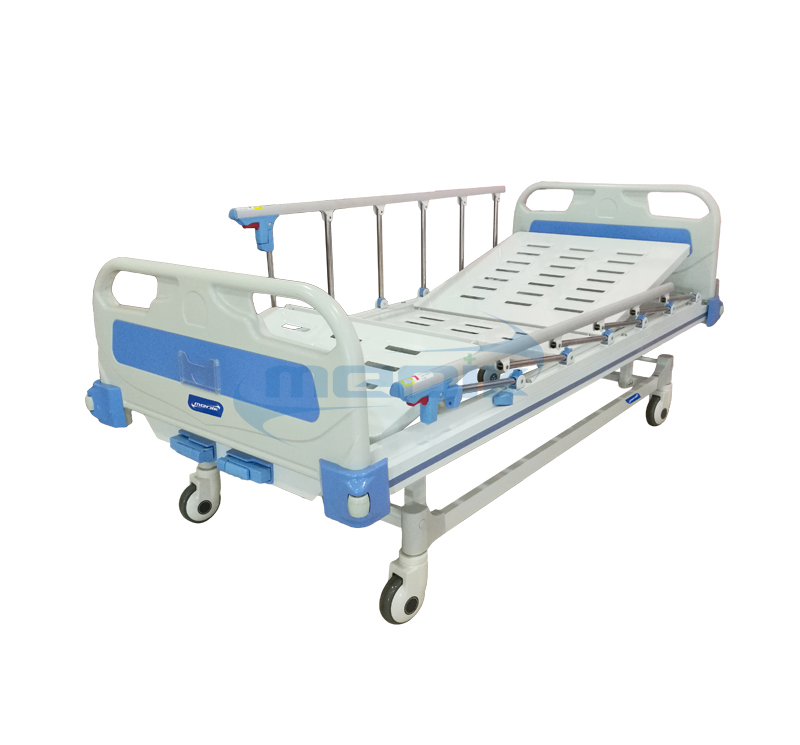

Model: YA-M2AD03
Overall Size: 2150*980*550mm
Safe Working Load: 185kg
Functions: Back section adjustable, Knee section adjustable
Technical features:
| Technical parameters | |
| Model | YA-M2AD03 |
| Overall Size | 2150*980*550mm |
| Lying surface | 1900*830mm |
| Fixed Height | 550mm |
| Back section adjustable | 0° to 75° |
| Knee section adjustable | 0° to 40° |
| Safe working load | 185kg |
| Specification | |
| Bed Frame | Electrophoresis and powder coating |
| Bed platform | MS perforated platform with ventilation hole, molded |
| Handrails | Collapsible aluninum railing with 6 bars |
| Head and Foot board | Detachable head/foot board with easy lock |
| Cranks | 2 peaces foldable crank |
| Castors | Caster diameter of 125mm with diagnoal locking |
| Bumper castors | Bumper castors on 4 corners of bed |
| Standard Accessories | |
| Head/Foot Board | 2 pieces |
| Side Rails | 2 pieces |
| Bed Frame | 1 set |
| Bed Boards | 4 pieces |
| Casters | 4 pieces |
| IV Pole Holder | 4 pieces |
| IV Pole | 1 piece |
| Drainage Bag Holders | 2 pieces |
