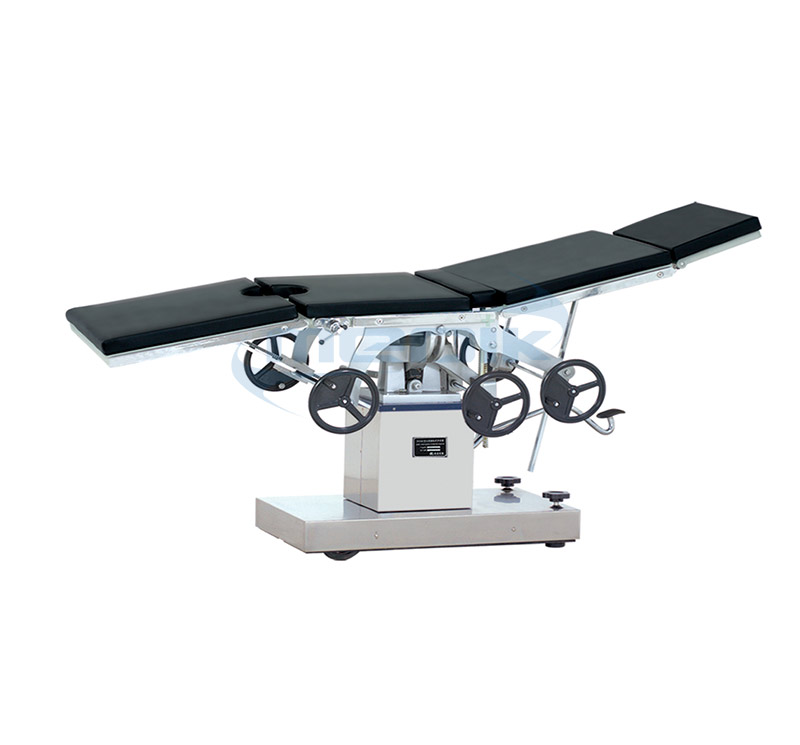

YA-3001A Manual Operation Table

Next Product Inquire Now

Product Details

Specifications:

Size: (2100±50mm)*(480±20mm) *(750-950)±50mm

Application: For various surgical operations(head, neck etc.) also orthopedic operations with traction frame

Functions:

1. HI-LOW:(750-950)±50mm

2. Head board fold upward≥45°and fold downward≥90°

3. Back board fold upward≥75°and fold downward≥18°

4. Leg board fold downward≥90° and fold outward≥90°

5. Trendelenburg≥20°and Reverse-Trendelenburg≥30°

6. Left and right tilting angle≥18°

7. Waist board lifting≥120mm

8. With double platform suitable for holding X-ray cassette

Structure: Boasting double beds, control on both sides to achieve different positions

Chassis: Stainless steel base

Accessories: 1 pair armrests, 1 pair waist grab holder, 1 pair shoulder supporter, 1 pair leg holders,
1pc anesthesia screen, Imported Y style hermetic ring, Hydraulic oil pump for elevation

Loading capacity: 180kgs

Packing: 126*78*105cm=1.03M3 G.W.:280kgs
